ASB6112-WRC
ULTRA COMPACT HIGH-POWER 12” SUBWOOFER SYSTEM. 2263H DIFFERENTIAL DRIVE WOOFER, 3” DUAL VOICE COIL

  • UM : EA
  • Estimated Weight: 50.0

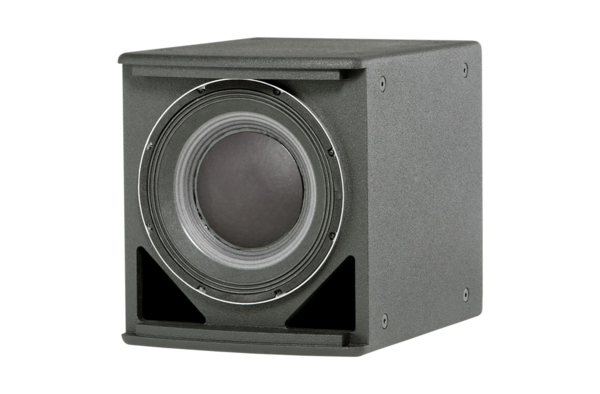

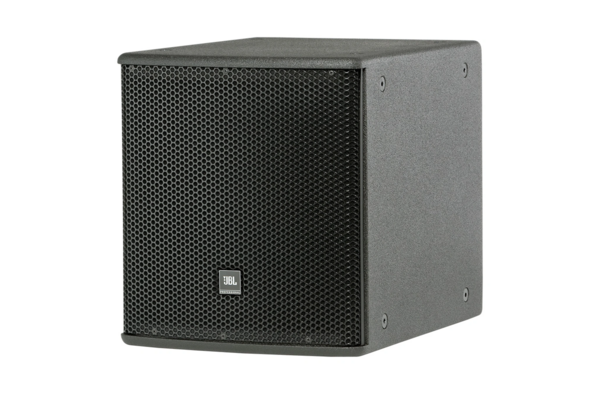

The ASB6112-WRC is a front-loaded, vented subwoofer enclosure containing a JBL 2263H Differential Drive 12-inch woofer. The woofer is equipped with dual coils and dual gaps and uses a neodymium magnet. The cone is designed for enhanced durability.

Features:

  • 12" Differential Drive dual voice coil dual gap
  • neodymium magnet transducer
  • 1000W continuous power
  • 4000W peak power
  • Large vent area for high output with low distortion
  • FIR Tuning Set matches phase profile to full-range models
  • Suitable for ground-stacked or suspended applications
Frequency Range 35 Hz – 1 kHz
Frequency Response 43 Hz – 1 kHz
Transducer Power Rating 1000 W (4000 W peak), 2 hrs
System Power Rating 700 W (2800 W peak), 100 hrs
Maximum SPL (1m) 40 Hz - 300 Hz: 126 dB continuous avg (132 dB peak)
System Sensitivity 40 Hz - 300 Hz: 96 dB, 1W (2.83V) @ 1m
Nominal Impedance 8ohms
LF Driver 1 x 2263H, 305 mm (12 in) dia., 75 mm (3 in) Dual Coil Dual Gap neodymium Differential Drive
Enclosure Rectangular cabinet, 16 mm exterior grade 11-ply birch plywood
Suspension Attachment 16 points, M10 threaded hardware
Finish Black DuraFlex finish
baffle Powder coated 14 gauge perforated steel, acoustically transparent black foam backing
Input Connector NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals, accepts up to 5.2 sq mm wire or 9 mm spade lugs, Speakon parallel with barrier for loop-through
Environmental Mil-Std 810; IP-x3 per IEC529
Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers
Nominal LF Driver Impedance 8ohms
