ASB6112-WRX | ULTRA COMPACT HIGH-POWER 12” SUBWOOFER SYSTEM. 2263H DIFFERENTIAL DRIVE WOOFER, 3” DUAL VOICE COIL

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
ULTRA COMPACT HIGH-POWER 12” SUBWOOFER SYSTEM. 2263H DIFFERENTIAL DRIVE WOOFER, 3” DUAL VOICE COIL

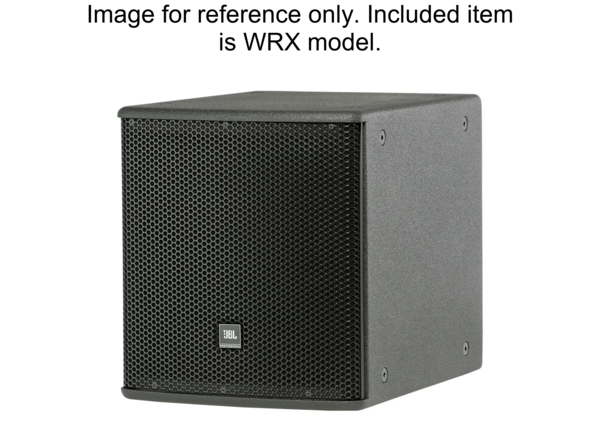

Click image to enlarge

ASB6112-WRX
ULTRA COMPACT HIGH-POWER 12” SUBWOOFER SYSTEM. 2263H DIFFERENTIAL DRIVE WOOFER, 3” DUAL VOICE COIL

  • UM : EA
  • Estimated Weight: 55.0

The ASB6112-WRX is a front-loaded, vented subwoofer enclosure designed to house a 12-inch JBL 2263H Differential Drive woofer. The woofer includes dual coils and dual gaps, utilizes a neodymium magnet, and features a robust cone constructed for extended durability.

Features:

  • 12" Differential Drive dual voice coil dual gap
  • Neodymium magnet transducer
  • 1000W continuous pink noise power handling
  • 4000W peak power handling
  • Large vent area for high output and low distortion
  • FIR tuning matches phase profile to full-range models
  • Suitable for ground-stacked or suspended applications
  • Compatible with other AE Series products
Frequency Range (-10dB) 35 Hz – 1 kHz
Frequency Response (±3 dB) 43 Hz – 1 kHz
Transducer Power Rating (AES) 1000 W (4000 W peak), 2 hrs
System Power Rating 700 W (2800 W peak), 100 hrs
Maximum SPL (1m) 40 Hz - 300 Hz: 126 dB cont avg (132 dB peak)
System Sensitivity 40 Hz - 300 Hz: 96 dB, 1W (2.83V) @ 1m
Nominal Impedance 8ohms
LF Driver 1 x 2263H, 305 mm dia., 75 mm Dual Coil Dual Gap neodymium Differential Drive driver
Enclosure Rectangular cabinet, 16 mm exterior grade 11-ply birch plywood
Suspension Attachment 16 points, M10 threaded hardware
FinishWhite DuraFlex finish
baffle Powder coated 14 gauge perforated steel with acoustically transparent black foam backing
Input Connector NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals; barrier terminals accept up to 5.2 sq mm wire or 9 mm spade lugs; Speakon in parallel with barrier strip for loop-through
Environmental Mil-Std 810; IP-x3 per IEC529
Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers
Nominal LF Driver Impedance 8ohms
