ASB6115 | COMPACT HIGH-POWER 15” SUBWOOFER SYSTEM. 2265H-1 DIFFERENTIAL DRIVE WOOFER,

  • MAP: $2,350.00 / EA
  • List Price: $2,350.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
COMPACT HIGH-POWER 15” SUBWOOFER SYSTEM. 2265H-1 DIFFERENTIAL DRIVE WOOFER,
COMPACT HIGH-POWER 15” SUBWOOFER SYSTEM. 2265H-1 DIFFERENTIAL DRIVE WOOFER,
Click image to enlarge
COMPACT HIGH-POWER 15” SUBWOOFER SYSTEM. 2265H-1 DIFFERENTIAL DRIVE WOOFER,
COMPACT HIGH-POWER 15” SUBWOOFER SYSTEM. 2265H-1 DIFFERENTIAL DRIVE WOOFER,

ASB6115
COMPACT HIGH-POWER 15” SUBWOOFER SYSTEM. 2265H-1 DIFFERENTIAL DRIVE WOOFER,

  • UM : EA

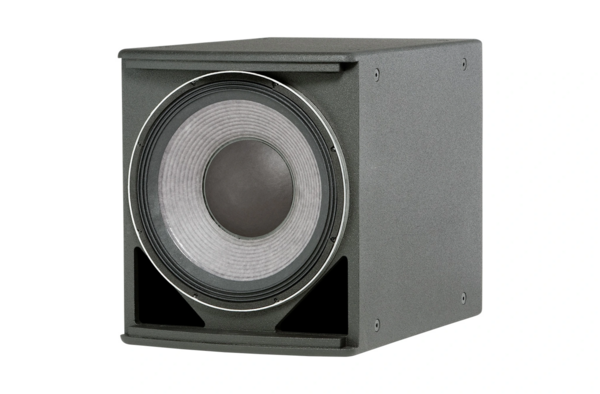

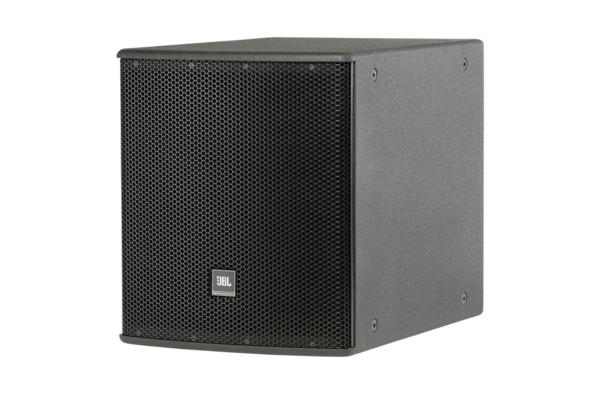

ASB6115 is a compact 15-inch front-loaded vented subwoofer enclosure. It contains a JBL 2265H-1 Differential Drive dual voice coil, dual gap woofer with a neodymium magnet and a durable cone design.

Features:

  • 15" Differential Drive dual voice coil dual gap
  • Neodymium magnet transducer
  • 800W continuous pink noise power handling
  • 3200W peak power handling
  • Large vent area for high output with low distortion
  • FIR Tuning set matches phase profile to full-range models
  • Suitable for ground-stacked or suspended applications
  • Compatible with AE Series products
Frequency Range (-10dB) 32 Hz - 1 kHz
Frequency Response (±3 dB) 42 Hz - 1 kHz
Transducer Power Rating (AES) 800 W (3200 W peak), 2 hrs
System Power Rating 675 W (2700 W peak), 100 hrs
Maximum SPL (1m) 35 Hz - 400 Hz: 126 dB-SPL cont avg (132 dB peak)
System Sensitivity 35 Hz - 400 Hz: 97 dB-SPL, 1W (2.83V) @ 1m
Nominal Impedance 8ohms
LF Driver 1 x 2265H-1, Dual Coil Dual Gap neodymium Differential Drive driver
Enclosure Rectangular cabinet, exterior grade 11-ply birch plywood
Suspension Attachment 16 points, M10 threaded hardware
FinishBlack DuraFlex finish
baffle Powder coated 14 gauge perforated steel with acoustically transparent black foam backing
Input Connector NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals, barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs; Speakon in parallel with barrier strip for loop-through
Environmental Mil-Std 810; IP-x3 per IEC529
Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers
Nominal LF Driver Impedance 8ohms
