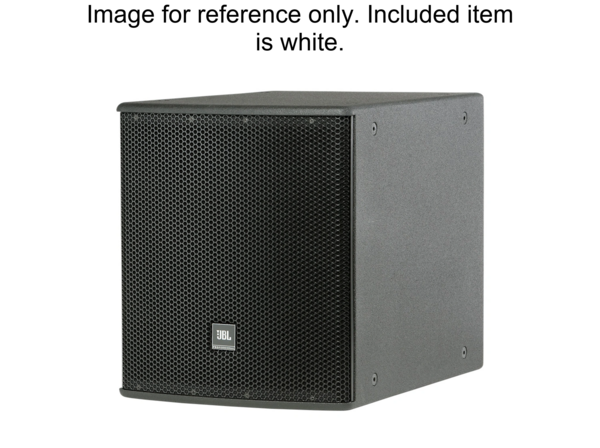

ASB6115-WH | COMPACT HIGH-POWER 15” SUBWOOFER SYSTEM. 2265H-1 DIFFERENTIAL DRIVE WOOFER,

  • MAP: $2,350.00 / EA
  • List Price: $2,350.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
COMPACT HIGH-POWER 15” SUBWOOFER SYSTEM. 2265H-1 DIFFERENTIAL DRIVE WOOFER,
Click image to enlarge

ASB6115-WH
COMPACT HIGH-POWER 15” SUBWOOFER SYSTEM. 2265H-1 DIFFERENTIAL DRIVE WOOFER,

  • UM : EA

The ASB6115-WH is a compact, front-loaded vented subwoofer enclosure designed to house a 15-inch JBL 2265H-1 woofer. The woofer incorporates a Differential Drive dual voice coil dual gap design with a neodymium magnet and a reinforced cone for enhanced durability.

Features:

  • 15" Differential Drive dual voice coil dual gap transducer
  • Neodymium magnet
  • 800W continuous power
  • 3200W peak power
  • Large vent area for low distortion
  • FIR tuning for phase matching
  • Suitable for ground-stacked or suspended applications
Frequency Range 32 Hz - 1 kHz
Frequency Response 42 Hz - 1 kHz
Transducer Power Rating 800 W (3200 W peak), 2 hrs
System Power Rating 675 W (2700 W peak), 100 hrs
Maximum SPL 126 dB-SPL cont avg (132 dB peak)
System Sensitivity 97 dB-SPL, 1W (2.83V) @ 1m
Nominal Impedance 8ohms
LF Driver 1 x 2265H-1, 75 mm Dual Coil Dual Gap neodymium Differential Drive driver
Enclosure Rectangular cabinet, 16 mm exterior grade 11-ply birch plywood
Suspension Attachment 16 points, M10 threaded hardware
FinishWhite DuraFlex finish
baffle Powder coated 14 gauge perforated steel with acoustically transparent black foam backing
Input Connector NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals; barrier terminals accept up to 5.2 sq mm wire or max width 9 mm spade lugs; Speakon in parallel with barrier strip for loop-through
Environmental Mil-Std 810; IP-x3 per IEC529
Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers
Nominal LF Driver Impedance 8ohms
