ASB6115-WRC | COMPACT HIGH-POWER 15” SUBWOOFER SYSTEM. 2265H-1 DIFFERENTIAL DRIVE WOOFER, 3” DUAL VOICE COIL

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
COMPACT HIGH-POWER 15” SUBWOOFER SYSTEM. 2265H-1 DIFFERENTIAL DRIVE WOOFER, 3” DUAL VOICE COIL
Click image to enlarge

ASB6115-WRC
COMPACT HIGH-POWER 15” SUBWOOFER SYSTEM. 2265H-1 DIFFERENTIAL DRIVE WOOFER, 3” DUAL VOICE COIL

  • UM : EA
  • Estimated Weight: 109.3

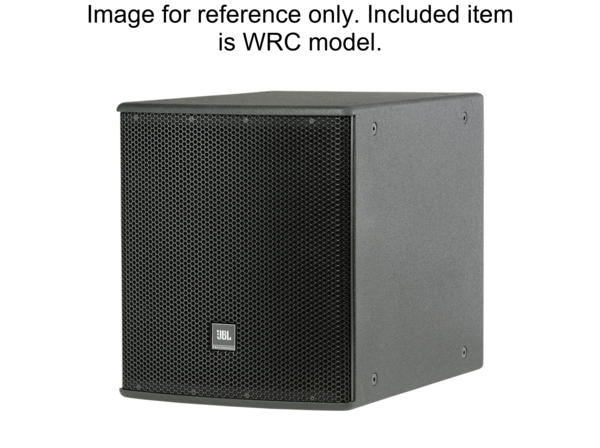

ASB6115-WRC is a compact, front-loaded vented subwoofer enclosure designed for high power audio applications. It contains a JBL 2265H-1 Differential Drive dual voice coil, dual gap 15-inch woofer. The woofer employs a neodymium magnet and a cone constructed for enhanced durability.

Features:

  • 15" Differential Drive dual voice coil dual gap
  • Neodymium magnet transducer
  • 800W continuous pink noise power handling
  • 3200W peak power handling
  • Large vent area for high output with low distortion
  • FIR tuning set matches phase profile to full-range models
  • Suitable for ground-stacked or suspended applications
Frequency Range 32 Hz - 1 kHz
Frequency Response 42 Hz - 1 kHz
Transducer Power Rating (AES) 800 W (3200 W peak), 2 hrs
System Power Rating 675 W (2700 W peak), 100 hrs
Maximum SPL (1m) 35 Hz - 400 Hz: 126 dB continuous avg, 132 dB peak
System Sensitivity 35 Hz - 400 Hz: 97 dB, 1W (2.83V) @ 1m
Nominal Impedance 8ohms
LF Driver 1 x 2265H-1, 15 in dia, 3 in Dual Coil Dual Gap neodymium Differential Drive driver
Enclosure Rectangular, 16 mm exterior grade 11-ply birch plywood
Suspension Attachment 16 points (4 top, 4 bottom, 4 each side), M10 threaded hardware
Finish Black DuraFlex; White available upon request
baffle Powder coated 14 gauge perforated steel, acoustically transparent black foam backing
Input Connector NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals; barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max 9 mm spade lugs; Speakon in parallel for loop-through
Environmental Mil-Std 810; IP-x3 per IEC529
Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers
Nominal LF Driver Impedance 8ohms
