ASB6115-WRX | COMPACT HIGH-POWER 15” SUBWOOFER SYSTEM. 2265H-1 DIFFERENTIAL DRIVE WOOFER, 3” DUAL VOICE COIL

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
COMPACT HIGH-POWER 15” SUBWOOFER SYSTEM. 2265H-1 DIFFERENTIAL DRIVE WOOFER, 3” DUAL VOICE COIL
Click image to enlarge

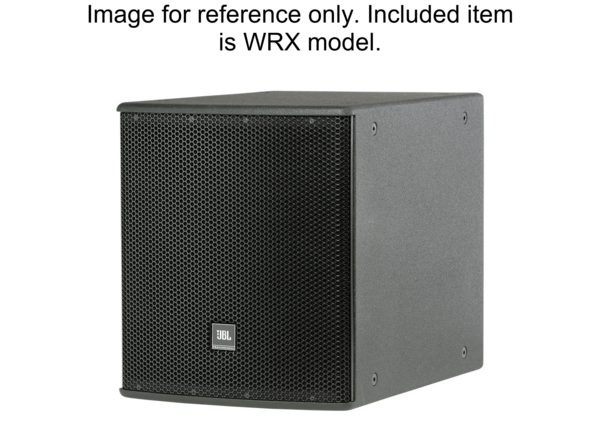

ASB6115-WRX
COMPACT HIGH-POWER 15” SUBWOOFER SYSTEM. 2265H-1 DIFFERENTIAL DRIVE WOOFER, 3” DUAL VOICE COIL

  • UM : EA
  • Estimated Weight: 68.0

The ASB6115-WRX is a front-loaded vented subwoofer enclosure containing a JBL 2265H-1 Differential Drive 15-inch woofer. The woofer includes dual voice coils and dual gaps, utilizes a neodymium magnet, and features a durable cone designed for extended operational lifespan.

Features:

  • 15-inch Differential Drive dual voice coil dual gap
  • Neodymium magnet transducer
  • 800W continuous power
  • 3200W peak power
  • Large vent area for high output and low distortion
  • FIR tuning matches phase profile to full-range models
  • Suitable for ground-stacked or suspended use
  • Compatible with other AE Series products
Frequency Range 32 Hz - 1 kHz
Frequency Response 42 Hz - 1 kHz
Transducer Power Rating (AES) 800 W (3200 W peak), 2 hrs
System Power Rating 675 W (2700 W peak), 100 hrs
Maximum SPL (1m) 126 dB-SPL continuous average (132 dB peak)
System Sensitivity 97 dB-SPL, 1W (2.83V) @ 1m
Nominal Impedance 8ohms
LF Driver 1 x 2265H-1, 15 in dia., 3 in Dual Coil Dual Gap neodymium Differential Drive driver
Enclosure 16 mm exterior grade 11-ply birch plywood rectangular cabinet
Suspension Attachment 16 points, M10 threaded hardware
Finish Black DuraFlex finish, white available upon request
baffle Powder coated 14 gauge perforated steel with acoustically transparent black foam backing
Input Connector NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals; barrier terminals accept up to 5.2 sq mm wire or 9 mm spade lugs; Speakon in parallel with barrier strip for loop-through
Environmental Mil-Std 810; IP-x3 per IEC529
Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers
Nominal LF Driver Impedance 8ohms
