ASB6118 | HIGH POWER SINGLE 18" SUBWOOFER. 1 X 18" 2242H VGC DRIVER. SUSPENSION EYEBOLTS NOT INCLUDED.
ASB6118
HIGH POWER SINGLE 18" SUBWOOFER. 1 X 18" 2242H VGC DRIVER. SUSPENSION EYEBOLTS NOT INCLUDED.
Click image to enlarge
ASB6118
HIGH POWER SINGLE 18" SUBWOOFER. 1 X 18" 2242H VGC DRIVER. SUSPENSION EYEBOLTS NOT INCLUDED.
- UM : EA
- Estimated Weight: 98.0

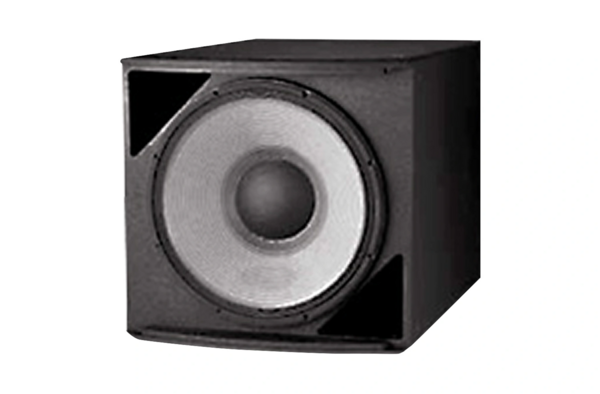

ASB6118 is a subwoofer system featuring a single 460 mm (18 in) SVG Super Vented Gap low-frequency driver. It employs a vented, front-loaded enclosure designed for extended bandwidth performance.
Features:
- Large vent area for high output
- FIR Tuning set matches phase profile to full-range models
- For fixed installation applications
| Frequency Range | 28 Hz – 1 kHz |
|---|---|
| Frequency Response | 35 Hz – 1 kHz |
| Transducer Power Rating | 1200 W (4800 W peak), 2 hrs |
| System Power Rating | 800 W (3200 W peak), 100 hrs |
| Maximum SPL (1m) | 129 dB-SPL cont avg (135 dB peak) from 30 Hz to 500 Hz |
| System Sensitivity (1W @ 1m) | 98 dB from 30 Hz to 500 Hz |
| Nominal Impedance | 8ohms |
| LF Driver | 1 x JBL 2242H 18 in SVG driver with 4 in voice coil |
| Nominal LF Driver Impedance | 8ohms |
| Enclosure | Rectangular cabinet, 16 mm exterior grade 11-ply Finnish birch plywood |
| Suspension Attachment | 12 points, M10 threaded hardware |
| Environmental | Mil-Std 810; IP-x3 per IEC529 |
