ASB6118-WH | HIGH POWER SINGLE 18" SUBWOOFER. 1 X 18" 2242H VGC DRIVER. SUSPENSION EYEBOLTS NOT INCLUDED.

  • MAP: $3,000.00 / EA
  • List Price: $3,000.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
HIGH POWER SINGLE 18" SUBWOOFER. 1 X 18" 2242H VGC DRIVER. SUSPENSION EYEBOLTS NOT INCLUDED.
Click image to enlarge

ASB6118-WH
HIGH POWER SINGLE 18" SUBWOOFER. 1 X 18" 2242H VGC DRIVER. SUSPENSION EYEBOLTS NOT INCLUDED.

  • UM : EA

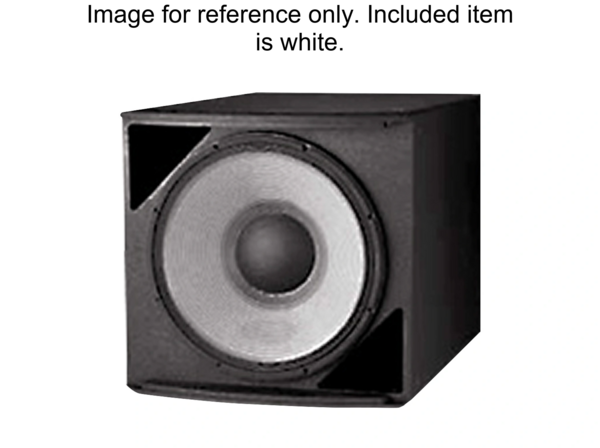

ASB6118-WH is a subwoofer system featuring a single 460 mm (18-inch) Super Vented Gap (SVG) low-frequency driver. It is designed with a vented, front-loaded enclosure to provide extended bandwidth.

Features:

  • Large vent area for high output
  • FIR tuning set matches phase profile to full-range models
  • For fixed installation applications
Frequency Range (-10dB) 28 Hz – 1 kHz
Frequency Response (±3 dB) 35 Hz – 1 kHz
Transducer Power Rating (AES) 1200 W (4800 W peak), 2 hrs
System Power Rating 800 W (3200 W peak), 100 hrs
Maximum SPL (1m) 129 dB-SPL cont avg (135 dB peak) from 30 Hz to 500 Hz
System Sensitivity (1w @ 1m) 98 dB from 30 Hz to 500 Hz
Nominal Impedance 8ohms
LF Driver 1 x JBL 2242H SVG driver with 100 mm voice coil
Nominal LF Driver Impedance 8ohms
Enclosure Rectangular cabinet, 16 mm exterior grade 11-ply Finnish birch plywood
Suspension Attachment 12 points, M10 threaded hardware
Environmental Mil-Std 810; IP-x3 per IEC529
