ASB6118-WRX | HIGH POWER SINGLE 18" SUBWOOFER. 1 X 18" 2242H VGC DRIVER. WITH EXTREME WEATHER PROTECTION

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
HIGH POWER SINGLE 18" SUBWOOFER. 1 X 18" 2242H VGC DRIVER. WITH EXTREME WEATHER PROTECTION
Click image to enlarge

ASB6118-WRX
HIGH POWER SINGLE 18" SUBWOOFER. 1 X 18" 2242H VGC DRIVER. WITH EXTREME WEATHER PROTECTION

  • UM : EA
  • Estimated Weight: 150.0

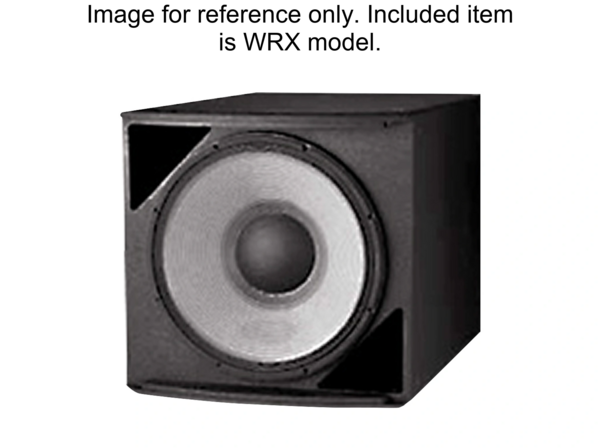

ASB6118-WRX is a subwoofer system featuring one 460 mm (18 inch) SVG Super Vented Gap low-frequency driver. The driver is mounted in a vented, front-loaded enclosure designed to extend frequency bandwidth.

Features:

  • Large vent area for high output
  • FIR tuning set matches phase profile to full-range models
  • For fixed installation applications
Frequency Range (-10dB) 28 Hz – 1 kHz
Frequency Response (±3 dB) 35 Hz – 1 kHz
Transducer Power Rating (AES) 1200 W (4800 W peak), 2 hrs
System Power Rating 800 W (3200 W peak), 100 hrs
Maximum SPL (1m) 30 Hz – 100 Hz: 129 dB-SPL cont avg (135 dB peak), 100 Hz – 500 Hz: 129 dB-SPL cont avg (135 dB peak)
System Sensitivity (1w @ 1m) 30 Hz – 100 Hz: 98 dB, 100 Hz – 500 Hz: 98 dB
Nominal Impedance 8ohms
LF Driver 1 x JBL 2242H SVG driver with 100 mm voice coil
Nominal LF Driver Impedance 8ohms
Enclosure Rectangular cabinet, 16 mm exterior grade 11-ply Finnish birch plywood
Suspension Attachment 12 points, M10 threaded hardware
Environmental Mil-Std 810; IP-x3 per IEC529
