ASB6125 | DUAL 15” HIGH-POWER SUBWOOFER SYSTEM. 2 X 2265H-1 DIFFERENTIAL DRIVE WOOFER, 3” DUAL VOICE COIL –

  • MAP: $3,680.00 / EA
  • List Price: $3,680.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
DUAL 15” HIGH-POWER SUBWOOFER SYSTEM. 2 X 2265H-1 DIFFERENTIAL DRIVE WOOFER, 3” DUAL VOICE COIL –
DUAL 15” HIGH-POWER SUBWOOFER SYSTEM. 2 X 2265H-1 DIFFERENTIAL DRIVE WOOFER, 3” DUAL VOICE COIL –
Click image to enlarge
DUAL 15” HIGH-POWER SUBWOOFER SYSTEM. 2 X 2265H-1 DIFFERENTIAL DRIVE WOOFER, 3” DUAL VOICE COIL –
DUAL 15” HIGH-POWER SUBWOOFER SYSTEM. 2 X 2265H-1 DIFFERENTIAL DRIVE WOOFER, 3” DUAL VOICE COIL –

ASB6125
DUAL 15” HIGH-POWER SUBWOOFER SYSTEM. 2 X 2265H-1 DIFFERENTIAL DRIVE WOOFER, 3” DUAL VOICE COIL –

  • UM : EA

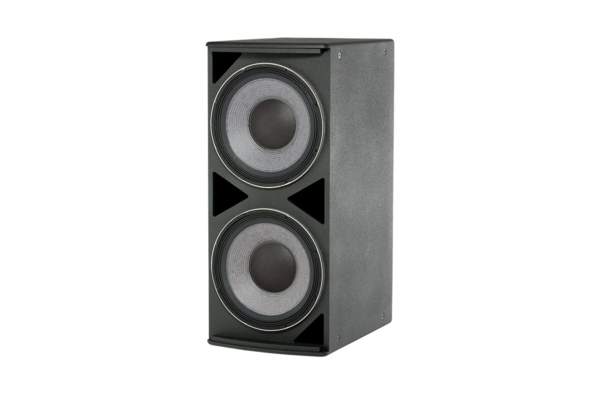

ASB6125 is a front-loaded vented subwoofer enclosure containing two JBL 2265H-1 Dual Voice Coil, Dual Gap 15-inch woofers. Each woofer includes neodymium magnets and cones designed for durability. The enclosure is designed for high power handling and lightweight operation.

  • 2 x 15" Differential Drive dual voice coil dual gap neodymium magnet transducers
  • 1600 watts continuous pink noise power handling
  • 6400 watts peak power handling
  • Parallel/Discrete switchable input mode
  • Large vent area for high output with low distortion
  • FIR tuning set matches phase profile to full-range models
  • Suitable for ground-stacked or suspended applications
  • Compatible with AE Series products
Frequency Range 32 Hz - 1 kHz
Frequency Response 38 Hz - 1 kHz
Transducer Power Rating (AES) 1600 W (6400 W peak), 2 hrs
Input Modes Drivers Parallel / Drivers Discrete
System Power Rating 1350 W (5400 W peak), 100 hrs
Maximum SPL (1m) 35 Hz - 400 Hz: 132 dB cont avg (138 dB peak)
System Sensitivity 35 Hz - 400 Hz: 100 dB, 1W (2.0V) @ 1m
Nominal Impedance 4 ohms in parallel mode, 2 x 8 ohms in discrete mode
LF Driver 2 x 2265H-1, 380 mm (15 in), 75 mm (3 in) Dual Coil Dual Gap neodymium Differential Drive drivers
Enclosure 16 mm exterior grade 11-ply birch plywood
Suspension Attachment 16 points, M10 threaded hardware
Finish Black DuraFlex Finish
Grille Powder coated 14 gauge perforated steel with acoustically transparent black foam backing
Input Connector NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals, barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max 9 mm spade lugs, Speakon in parallel with barrier strip for loop-through
Environmental Mil-Std 810; IP-x3 per IEC529
Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers
Nominal LF Driver Impedance 4 ohms in parallel mode, 2 x 8 ohms in discrete mode
