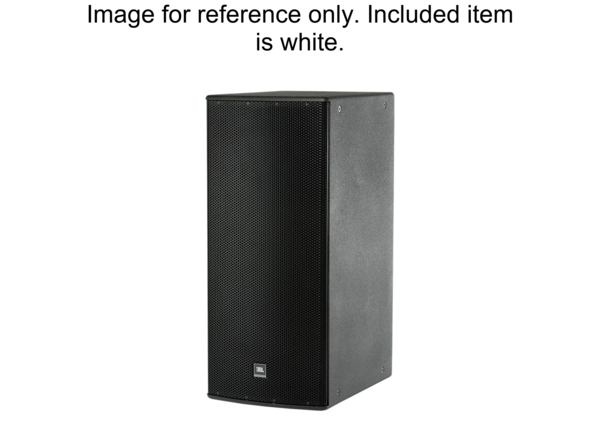

ASB6125-WH is a front-loaded vented subwoofer enclosure containing two JBL 2265H-1 Dual Voice Coil, Dual Gap 15-inch woofers. Each woofer includes neodymium magnets and cones designed for durability. The enclosure is designed for high power handling and lightweight operation.
- Dual 15" Differential Drive transducers
- Neodymium magnet
- 1600 watts continuous pink noise power handling
- 6400 watts peak power handling
- Parallel/Discrete switchable input mode
- Large vent area for low distortion
- FIR Tuning matches phase profile
- Suitable for ground-stacked or suspended applications
- Compatible with AE Series products
| Frequency Range | 32 Hz - 1 kHz |
|---|---|
| Frequency Response | 38 Hz - 1 kHz |
| Transducer Power Rating (AES) | 1600 W (6400 W peak), 2 hrs |
| Input Modes | Drivers Parallel / Drivers Discrete |
| System Power Rating | 1350 W (5400 W peak), 100 hrs |
| Maximum SPL | 132 dB-SPL cont avg (138 dB peak) |
| System Sensitivity | 100 dB-SPL, 1W (2.0V) @ 1m |
| Nominal Impedance | 4 ohms in parallel-drive mode, 2 x 8 ohms in discrete-drive mode |
| LF Driver | 2 x 2265H-1, 15 in dia, 3 in Dual Coil Dual Gap neodymium Differential Drive drivers |
| Enclosure | Rectangular cabinet, 16 mm exterior grade 11-ply birch plywood |
| Suspension Attachment | 16 points, M10 threaded hardware |
| Finish | White DuraFlex finish |
| Grille | Powder coated 14 gauge perforated steel with acoustically transparent black foam backing |
| Input Connector | NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals; barrier terminals accept up to 5.2 sq mm wire or max 9 mm spade lugs; Speakon in parallel with barrier strip for loop-through |
| Environmental | Mil-Std 810; IP-x3 per IEC529 |
| Optional Accessories | M10 x 35 mm forged shoulder eyebolts with washers |
| Nominal LF Driver Impedance | 4 ohms in parallel-drive mode, 2 x 8 ohms in discrete-drive mode |
