ASB6125-WRX | DUAL 15” HIGH-POWER SUBWOOFER SYSTEM. 2 X 2265H-1 DIFFERENTIAL DRIVE WOOFER,

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
DUAL 15” HIGH-POWER SUBWOOFER SYSTEM. 2 X 2265H-1 DIFFERENTIAL DRIVE WOOFER,
Click image to enlarge

ASB6125-WRX
DUAL 15” HIGH-POWER SUBWOOFER SYSTEM. 2 X 2265H-1 DIFFERENTIAL DRIVE WOOFER,

  • UM : EA
  • Estimated Weight: 97.0

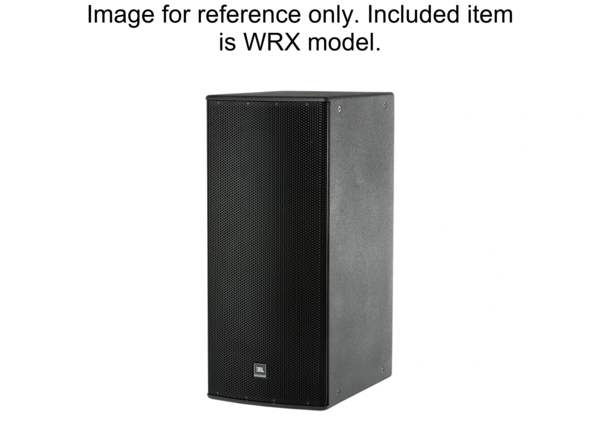

ASB6125-WRX is a front-loaded, vented subwoofer enclosure containing two JBL 2265H-1 Differential Drive 15-inch woofers. Each woofer features dual voice coils and dual gaps, utilizing neodymium magnets and cones designed for enhanced durability. The enclosure is designed for high power output while maintaining a lightweight form factor.

Features:

  • 15" Differential Drive dual voice coil dual gap neodymium magnet transducers
  • 1600W continuous pink noise power handling
  • 6400W peak power handling
  • Parallel/Discrete switchable input mode
  • Large vent area for high output and low distortion
  • FIR Tuning to match phase profile to full-range models
  • Suitable for ground-stacked or suspended applications
  • Compatible with AE Series products
Frequency Range 32 Hz - 1 kHz
Frequency Response 38 Hz - 1 kHz
Transducer Power Rating (AES) 1600 W (6400 W peak), 2 hrs
Input Modes Drivers Parallel / Drivers Discrete
System Power Rating 1350 W (5400 W peak), 100 hrs
Maximum SPL (1m) 35 Hz - 400 Hz: 132 dB-SPL continuous average (138 dB peak)
System Sensitivity 35 Hz - 400 Hz: 100 dB-SPL, 1W (2.0V) @ 1m
Nominal Impedance 4ohms in parallel-drive mode; 2 x 8ohms in discrete-drive mode
LF Driver 2 x 2265H-1, 15 in dia, 3 in Dual Coil Dual Gap neodymium Differential Drive drivers
Enclosure Rectangular cabinet, 16 mm exterior grade 11-ply birch plywood
Suspension Attachment 16 points, M10 threaded hardware
Finish Black DuraFlex finish; White available upon request
baffle Powder coated 14 gauge perforated steel with acoustically transparent black foam backing
Input Connector NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals; barrier terminals accept up to 5.2 sq mm wire or max width 9 mm spade lugs; Speakon in parallel with barrier strip for loop-through
Environmental Mil-Std 810; IP-x3 per IEC529
Nominal LF Driver Impedance 4ohms in parallel-drive mode; 2 x 8ohms in discrete-drive mode
