ASB6128 | HIGH POWER DUAL 18" SUBWOOFER. 2 X 18" 2242H VGC DRIVER, PARALLEL/DISCRETE SWITCHABLE.

  • MAP: $4,800.00 / EA
  • List Price: $4,800.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
HIGH POWER DUAL 18" SUBWOOFER. 2 X 18" 2242H VGC DRIVER, PARALLEL/DISCRETE SWITCHABLE.
Click image to enlarge

ASB6128
HIGH POWER DUAL 18" SUBWOOFER. 2 X 18" 2242H VGC DRIVER, PARALLEL/DISCRETE SWITCHABLE.

  • UM : EA

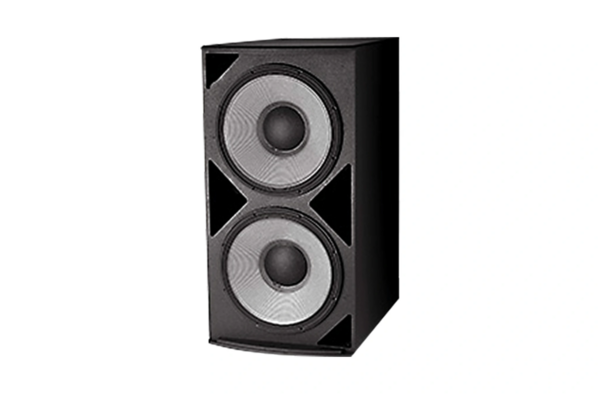

The ASB6128 subwoofer system consists of two 460 mm (18 in) SVG Super Vented Gap low-frequency drivers. The drivers are configured in a front-loaded, vented enclosure designed for high power output.

  • Large vent area for high output
  • Parallel/Discrete Switchable
  • FIR tuning matches phase profile to full-range models
  • For fixed installation applications
Frequency Range (-10dB) 28 Hz – 1 kHz
Frequency Response (±3 dB) 35 Hz – 1 kHz
Input Modes Drivers Parallel / Drivers Discrete
Transducer Power Rating (AES) 2400 W (9600 W peak), 2 hrs
System Power Rating 1600 W (6400 W peak), 100 hrs
Maximum SPL (1m) 30 Hz – 100 Hz: 136 dB-SPL cont avg (142 dB peak), 100 Hz – 500 Hz: 136 dB-SPL cont avg (142 dB peak)
System Sensitivity (1w @ 1m) 30 Hz – 100 Hz: 102 dB, 100 Hz – 500 Hz: 102 dB
Nominal Impedance 4 ohms in parallel-drive mode, 2 x 8 ohms in discrete-drive mode
LF Driver 2 x JBL 2242H 18 in SVG™ drivers with 4 in voice coil
Nominal LF Driver Impedance 4 ohms in parallel-drive mode, 2 x 8 ohms in discrete-drive mode
Enclosure Rectangular cabinet, 16 mm exterior grade 11-ply Finnish birch plywood
Suspension Attachment 12 points, M10 threaded hardware
Environmental Mil-Std 810; IP-x3 per IEC529
