ASB7118 | ULTRA HIGH-POWER 18” SUBWOOFER SYSTEM. . 2269H, DIFFERENTIAL DRIVE VENTED GAP WOOFER,

  • MAP: $4,500.00 / EA
  • List Price: $4,500.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
ULTRA HIGH-POWER 18” SUBWOOFER SYSTEM.  .  2269H, DIFFERENTIAL DRIVE  VENTED GAP  WOOFER,
ULTRA HIGH-POWER 18” SUBWOOFER SYSTEM.  .  2269H, DIFFERENTIAL DRIVE  VENTED GAP  WOOFER,
Click image to enlarge
ULTRA HIGH-POWER 18” SUBWOOFER SYSTEM.  .  2269H, DIFFERENTIAL DRIVE  VENTED GAP  WOOFER,
ULTRA HIGH-POWER 18” SUBWOOFER SYSTEM.  .  2269H, DIFFERENTIAL DRIVE  VENTED GAP  WOOFER,

ASB7118
ULTRA HIGH-POWER 18” SUBWOOFER SYSTEM. . 2269H, DIFFERENTIAL DRIVE VENTED GAP WOOFER,

  • UM : EA
  • Estimated Weight: 94.5

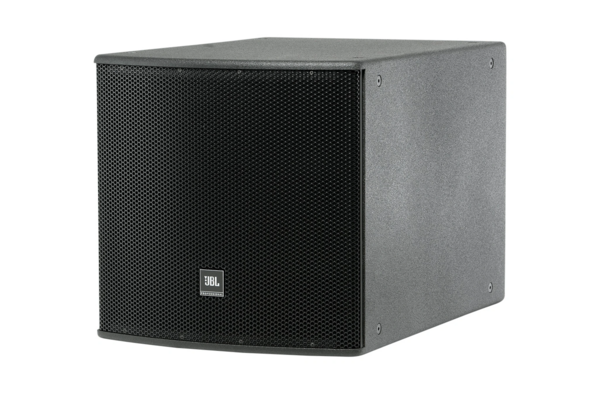

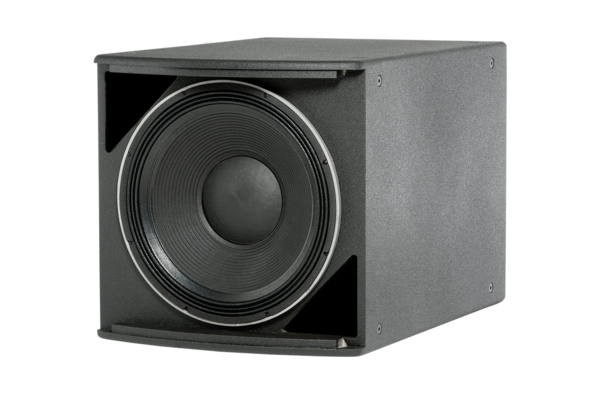

The ASB7118 is a front-loaded vented subwoofer enclosure containing an 18-inch JBL 2269H Differential Drive woofer. The woofer incorporates a neodymium magnet, dual voice coils, and dual magnetic gaps. It features Vented Gap Cooling technology and a composite cone designed for high excursion and durability. The woofer has a maximum peak-to-peak excursion of 89 mm (3.5 inches).

  • 18" Differential Drive dual voice coil dual gap neodymium magnet transducer
  • 2000W continuous pink noise power handling
  • 8000W peak power handling
  • Ultra long excursion
  • Large vent area for high output with low distortion
  • FIR tuning matches phase profile to full-range models
  • Suitable for ground-stacked or suspended applications
  • Compatible with AE Series products
Frequency Range 22 Hz - 1 kHz
Frequency Response 34 Hz - 1 kHz
Transducer Power Rating (AES) 2000 W (8000 W peak), 2 hrs
System Power Rating 1200 W (4800 W peak), 100 hrs
Maximum SPL (1m) 129 dB-SPL cont avg (135 dB peak)
System Sensitivity 96 dB-SPL, 1W (2.83V) @ 1m
Nominal Impedance 8ohms
LF Driver 1 x 2269H, 18 in dia., 4 in Dual Coil Dual Gap neodymium Differential Drive VGC driver
Enclosure Rectangular cabinet, 16 mm exterior grade 11-ply birch plywood
Suspension Attachment 16 points M10 threaded hardware
FinishWhite DuraFlex finish
baffle Powder coated 14 gauge perforated steel with acoustically transparent black foam backing
Input Connector Powder coated 14 gauge perforated steel with acoustically transparent black foam backing
Environmental Mil-Std 810; IP-x3 per IEC529
Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers
Nominal LF Driver Impedance 8ohms
