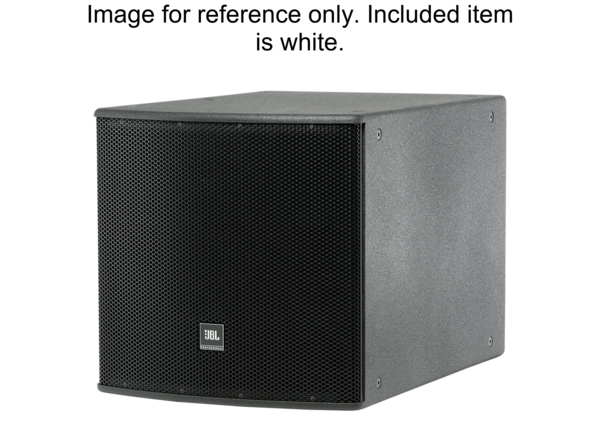

ASB7118-WH | ULTRA HIGH-POWER 18” SUBWOOFER SYSTEM. . 2269H DIFFERENTIAL DRIVE VENTED GAP WOOFER,

  • MAP: $4,500.00 / EA
  • List Price: $4,500.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times

ASB7118-WH
ULTRA HIGH-POWER 18” SUBWOOFER SYSTEM. . 2269H DIFFERENTIAL DRIVE VENTED GAP WOOFER,

  • UM : EA

The ASB7118-WH is a front-loaded vented subwoofer enclosure containing an 18-inch JBL 2269H Differential Drive woofer. The woofer incorporates a neodymium magnet, dual voice coils, and dual magnetic gaps. It features Vented Gap Cooling technology and a composite cone designed for high excursion and durability. The woofer has a maximum peak-to-peak excursion of 89 mm (3.5 inches).

  • 18" Differential Drive dual voice coil dual gap
  • Neodymium magnet transducer
  • 2000W continuous power
  • 8000W peak power
  • Ultra long excursion
  • Large vent area for high output with low distortion
  • FIR tuning set matches phase profile to full-range models
  • Suitable for ground-stacked or suspended applications
  • Compatible with AE Series products
Frequency Range 22 Hz - 1 kHz
Frequency Response 34 Hz - 1 kHz
Transducer Power Rating (AES) 2000 W (8000 W peak), 2 hrs
System Power Rating 1200 W (4800 W peak), 100 hrs
Maximum SPL (1m) 129 dB-SPL cont avg (135 dB peak)
System Sensitivity 96 dB-SPL, 1W (2.83V) @ 1m
Nominal Impedance 8ohms
LF Driver 1 x 2269H, 460 mm (18 in) dia., 100 mm (4 in) Dual Coil Dual Gap neodymium Differential Drive VGC™ driver
Enclosure Rectangular cabinet, 16 mm exterior grade 11-ply birch plywood
Suspension Attachment 16 points (4 top, 4 bottom, 4 each side) M10 threaded hardware
FinishWhite DuraFlex finish
baffle Powder coated 14 gauge perforated steel with acoustically transparent black foam backing
Input Connector Powder coated 14 gauge perforated steel with acoustically transparent black foam backing
Environmental Mil-Std 810; IP-x3 per IEC529
Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers
Nominal LF Driver Impedance 8ohms
