ASB7118-WRC | ULTRA HIGH-POWER 18” SUBWOOFER SYSTEM. . 2269H . DIFFERENTIAL DRIVE VENTED GAP WOOFER,

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
ULTRA HIGH-POWER 18” SUBWOOFER SYSTEM. . 2269H . DIFFERENTIAL DRIVE VENTED GAP WOOFER,

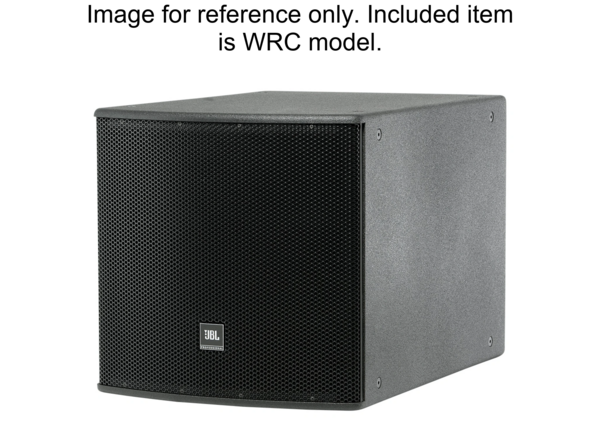

Click image to enlarge

ASB7118-WRC
ULTRA HIGH-POWER 18” SUBWOOFER SYSTEM. . 2269H . DIFFERENTIAL DRIVE VENTED GAP WOOFER,

  • UM : EA
  • Estimated Weight: 130.0

ASB7118-WRC is a front-loaded vented subwoofer enclosure containing an 18-inch JBL 2269H Differential Drive woofer. The woofer includes a neodymium magnet, dual voice coils, and dual gaps. It incorporates JBL’s Vented Gap Cooling system and features an ultra-robust composite cone designed for high excursion and extended operational lifespan. The woofer supports a peak-to-peak maximum excursion of 89 mm (3.5 inches).

Features:

  • 18" Differential Drive dual voice coil dual gap, neodymium magnet transducer
  • 2000W continuous pink noise power
  • 8000W peak power handling
  • Ultra Long Excursion
  • Large vent area for high output with low distortion
  • FIR Tuning matches phase profile to full-range models
  • Suitable for ground-stacked or suspended applications
  • Compatible with other AE Series products
Frequency Range (-10dB) 22 Hz - 1 kHz
Frequency Response (±3 dB) 34 Hz - 1 kHz
Transducer Power Rating (AES) 2000 W (8000 W peak), 2 hrs
System Power Rating 1200 W (4800 W peak), 100 hrs
Maximum SPL (1m) 25 Hz - 200 Hz: 129 dB-SPL cont avg (135 dB peak)
System Sensitivity 25 Hz - 200 Hz: 96 dB-SPL, 1W (2.83V) @ 1m
Nominal Impedance 8ohms
LF Driver 1 x 2269H, 100 mm (4 in) Dual Coil Dual Gap neodymium Differential Drive VGC driver
Enclosure Rectangular cabinet, 16 mm exterior grade 11-ply birch plywood
Suspension Attachment 16 points M10 threaded hardware
Finish Black DuraFlex finish. White available upon request
baffle Powder coated 14 gauge perforated steel with acoustically transparent black foam backing
Input Connector Powder coated 14 gauge perforated steel with acoustically transparent black foam backing
Environmental Mil-Std 810; IP-x3 per IEC529
Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers
Nominal LF Driver Impedance 8ohms
