ASB7118WRX | SINGLE 18" SUBWOOFER, EXTREME WEATHER PROTECTION TREATMENT

  • Call for Price
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
SINGLE 18" SUBWOOFER, EXTREME WEATHER PROTECTION TREATMENT
Click image to enlarge

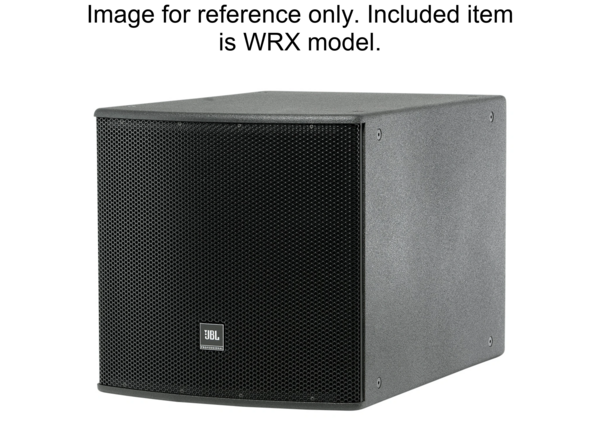

ASB7118WRX
SINGLE 18" SUBWOOFER, EXTREME WEATHER PROTECTION TREATMENT

  • UM : EA

ASB7118WRX is an 18-inch front-loaded vented subwoofer enclosure containing the JBL 2269H Ultra Long Excursion Differential Drive woofer. The woofer features a neodymium magnet, dual voice coils, dual magnetic gaps, and Vented Gap Cooling technology. It has a composite cone designed for high excursion and durability. The maximum peak-to-peak excursion of the woofer is 89 mm (3.5 inches).

Features:

  • 18" Differential Drive dual voice coil dual gap
  • Neodymium magnet transducer
  • 2000W continuous pink noise power
  • 8000W peak power handling
  • Ultra long excursion
  • Large vent area for high output with low distortion
  • FIR tuning set matches phase profile to full-range models
  • Suitable for ground-stacked or suspended applications
  • Compatible with AE Series products
Frequency Range (-10dB) 22 Hz - 1 kHz
Frequency Response (±3 dB) 34 Hz - 1 kHz
Transducer Power Rating (AES) 2000 W (8000 W peak), 2 hrs
System Power Rating 1200 W (4800 W peak), 100 hrs
Maximum SPL (1m) 25 Hz - 200 Hz: 129 dB-SPL cont avg (135 dB peak)
System Sensitivity 25 Hz - 200 Hz: 96 dB-SPL, 1W (2.83V) @ 1m
Nominal Impedance 8ohms
LF Driver 1 x 2269H, 100 mm Dual Coil Dual Gap neodymium Differential Drive VGC driver
Enclosure Rectangular cabinet, 16 mm exterior grade 11-ply birch plywood
Suspension Attachment 16 points M10 threaded hardware
Finish Black DuraFlex finish, white available upon request
baffle Powder coated 14 gauge perforated steel with acoustically transparent black foam backing
Input Connector Powder coated 14 gauge perforated steel with acoustically transparent black foam backing
Environmental Mil-Std 810; IP-x3 per IEC529
Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers
Nominal LF Driver Impedance 8ohms
