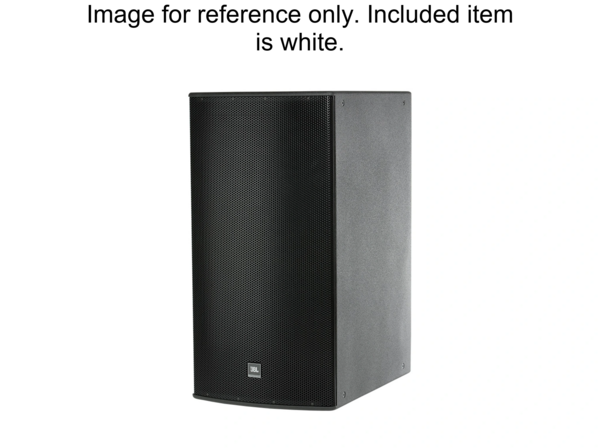

ASB7128-WH | DUAL 18” ULTRA HIGH-POWER SUBWOOFER SYSTEM. 2 X 2269H DIFFERENTIAL DRIVE VENTED GAP WOOFER,

  • MAP: $7,900.00 / EA
  • List Price: $7,900.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times

ASB7128-WH
DUAL 18” ULTRA HIGH-POWER SUBWOOFER SYSTEM. 2 X 2269H DIFFERENTIAL DRIVE VENTED GAP WOOFER,

  • UM : EA

The ASB7128-WH is a front-loaded, vented subwoofer enclosure containing two JBL 2269H 18-inch Differential Drive woofers. Each woofer includes a neodymium magnet, dual voice coils, and dual gaps. The design incorporates Vented Gap Cooling technology and an ultra-robust composite cone. The woofers support a maximum peak-to-peak excursion of 89 mm (3.5").

  • 2 x 2269H 18" Differential Drive dual voice coil dual gap neodymium magnet transducers
  • 4000W continuous pink noise power handling
  • 16000W peak power handling
  • Ultra Long Excursion
  • Large vent area for high output with low distortion
  • Parallel/Discrete switchable input mode
  • FIR Tuning Set matches phase profile to full-range models
  • Suitable for ground-stacked or suspended applications
  • Compatible with other AE Series products
Frequency Range (-10dB) 20 Hz - 1 kHz
Frequency Response (±3 dB) 25 Hz - 1 kHz
Transducer Power Rating (AES) 4000 W (16000 W peak), 2 hrs
Input Modes Drivers Parallel / Drivers Discrete
System Power Rating 2400 W (9600 W peak), 100 hrs
Maximum SPL (1m) 25 Hz - 200 Hz: 135 dB-SPL continuous avg. (141 dB peak)
System Sensitivity 25 Hz - 200 Hz: 99 dB-SPL, 1W (2.0V) @ 1m
Nominal Impedance 4ohms in parallel-drive mode, 2 x 8ohms in discrete-drive mode
LF Driver 2 x 2269H, Dual Coil Dual Gap neodymium Differential Drive, VGC drivers
Enclosure Rectangular cabinet, 16 mm exterior grade 11-ply birch plywood
Suspension Attachment 16 points M10 threaded hardware
FinishWhite DuraFlex finish
baffle Powder coated 14 gauge perforated steel with acoustically transparent black foam backing
Input Connector NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals; Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max 9 mm spade lugs; Speakon in parallel with barrier strip for loop-through
Environmental Mil-Std 810; IP-x3 per IEC529
Optional Accessories M10 x 35 mm forged shoulder eyebolts with washers
Nominal LF Driver Impedance 4ohms in parallel-drive mode, 2 x 8ohms in discrete-drive mode
