DUAL 18” ULTRA HIGH-POWER SUBWOOFER SYSTEM. 2 X 2269H DIFFERENTIAL DRIVE VENTED GAP WOOFER,
Click image to enlarge

ASB7128-WRC
DUAL 18” ULTRA HIGH-POWER SUBWOOFER SYSTEM. 2 X 2269H DIFFERENTIAL DRIVE VENTED GAP WOOFER,

  • UM : EA
  • Estimated Weight: 164.0

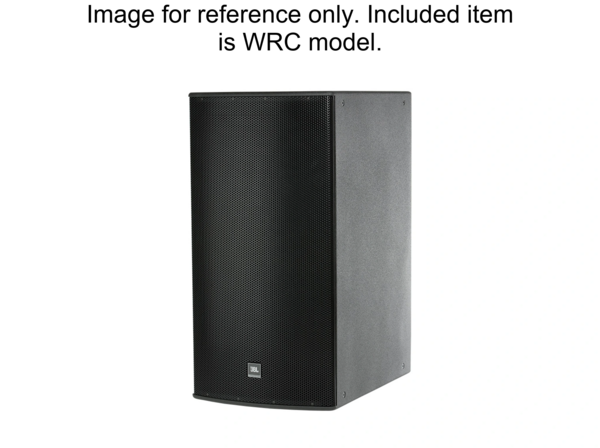

ASB7128-WRC is a front-loaded vented subwoofer enclosure containing two JBL 2269H 18-inch Differential Drive woofers. Each woofer includes neodymium magnets, dual voice coils, and dual gaps with Vented Gap Cooling™ technology. The woofers use ultra-robust composite cones designed for high excursion and durability. The maximum peak-to-peak excursion for each woofer is 89 mm (3.5 inches).

Features:

  • 2 x 2269H 18" Differential Drive dual voice coil dual gap neodymium transducers
  • 4000 watts continuous pink noise power
  • 16000 watts peak power handling
  • Ultra Long Excursion
  • Large vent area for high output and low distortion
  • Parallel/Discrete switchable input mode
  • FIR Tuning matches phase profile to full-range models
  • For ground-stacked or suspended applications
  • Compatible with AE Series products
  • Differential Drive Technology
  • Dual voice coil design
  • Neodymium magnet
  • Dual gap transducers
  • High output with low distortion
  • Stand-alone or combined array use
Frequency Range 20 Hz - 1 kHz
Frequency Response 25 Hz - 1 kHz ±3 dB
Transducer Power Rating 4000 W AES (16000 W peak), 2 hrs
Input Modes Drivers Parallel / Drivers Discrete
System Power Rating 2400 W AES (9600 W peak), 100 hrs
Maximum SPL (1m) 135 dB continuous avg, 141 dB peak
System Sensitivity 99 dB-SPL, 1W @ 1m
Nominal Impedance 4 ohms parallel-drive, 2 x 8 ohms discrete-drive
LF Driver 2 x 2269H Dual Coil Dual Gap neodymium Differential Drive, VGC drivers
Finish Black DuraFlex finish; white available
