DUAL 18” ULTRA HIGH-POWER SUBWOOFER SYSTEM. 2 X 2269H DIFFERENTIAL DRIVE VENTED GAP WOOFER,
Click image to enlarge

ASB7128-WRX
DUAL 18” ULTRA HIGH-POWER SUBWOOFER SYSTEM. 2 X 2269H DIFFERENTIAL DRIVE VENTED GAP WOOFER,

  • UM : EA
  • Estimated Weight: 170.0

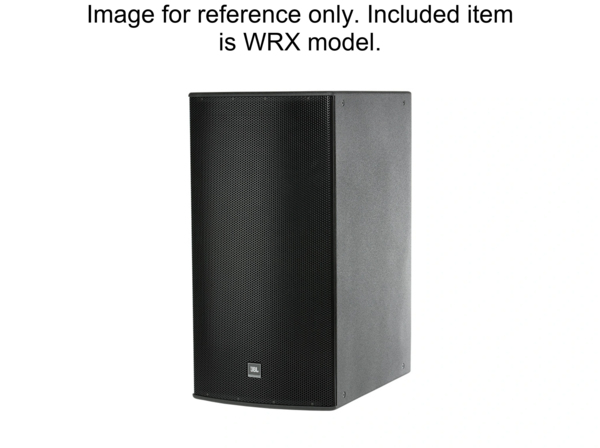

The ASB7128-WRX is a front-loaded, vented subwoofer enclosure containing two JBL 2269H Differential Drive 18-inch woofers. Each woofer includes a neodymium magnet, dual voice coils and dual magnetic gaps, along with Vented Gap Cooling™ technology. The woofers have composite cones designed for high excursion and durability.

Features:

  • 18" Differential Drive dual voice coil dual gap neodymium magnet transducers
  • 4000 watts continuous pink noise power handling
  • 16000 watts peak power handling
  • Ultra long excursion
  • Large vent area for high output with low distortion
  • Parallel/Discrete switchable input mode
  • FIR tuning sets matches phase profile to full-range models
  • Suitable for ground-stacked or suspended applications
  • Can be used in stand-alone arrays
  • Compatible with other AE Series products
Frequency Range 20 Hz - 1 kHz
Frequency Response 25 Hz - 1 kHz
Transducer Power Rating 4000 W (16000 W peak), 2 hrs
Input Modes Drivers Parallel / Drivers Discrete
System Power Rating 2400 W (9600 W peak), 100 hrs
Maximum SPL (1m) 135 dB-SPL cont avg. (141 dB peak)
System Sensitivity 99 dB-SPL, 1W (2.0V) @ 1m
Nominal Impedance 4 ohms parallel-drive; 2 x 8 ohms discrete-drive
LF Driver 2 x 2269H, 18 in dia., 4 in Dual Coil Dual Gap neodymium Differential Drive
Input Connector NL4 Neutrik Speakon and CE-compliant barrier strip terminals
