ATCP-W02R |

  • MAP: $239.00 / EA
  • List Price: $239.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 10
  • Sign In or Submit RFQ for accurate lead times
Click image to enlarge

ATCP-W02R

  • UM : EA

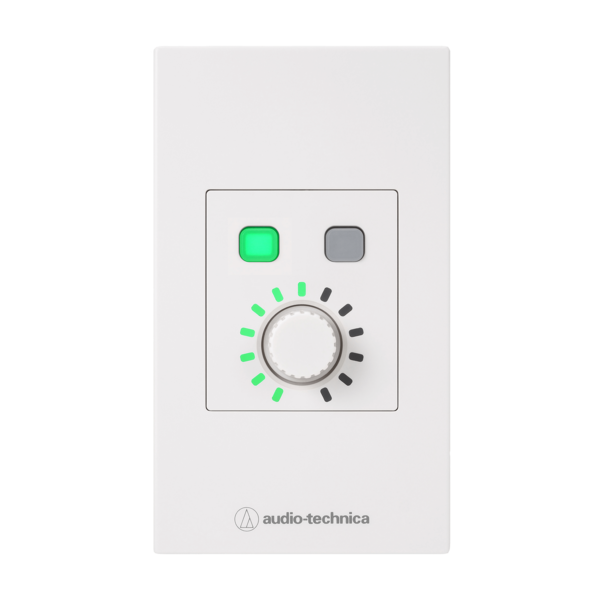

Dramatically improve the functionality of an ATDM-0604a or ATDM-1012/1012DAN Digital SmartMixer® with the ATCP-W02R control panel. This wall-mount unit offers convenient dial volume control along with buttons to recall presets and switch channels assigned by the mixer’s Web Remote function. The control panel also includes a programable dial button to switch between and lock presets. The rear of the ATCP-W02R is equipped with two RJ45 Audio-Technica LINK ports, enabling the connection of up to four control panels to a single mixer via Cat5e or higher Ethernet cable.*

*Four control panels can be daisy-chained from the ATDM-1012/1012DAN; an ATLK-EXT25 link extender is required to power multiple control panels from the ATDM-0604a.

Features

  • Easily adjust the volume of an ATDM-0604a or ATDM-1012 SmartMixer®
  • Fast SmartMixer preset and channel switching
  • Dial button and upper buttons can be customized using the SmartMixer Web Remote function
  • Equipped with two RJ45 Audio-Technica LINK ports for connecting to mixer via Cat5e or higher Ethernet cable
  • Drive up to four control panels from a single mixer*
