ATM75CW | CARDIOID CONDENSER HEADWORN MICROPHONE WITH 55" CABLE TERMINATED WITH LOCKING 4-PIN HRS-TYPE
ATM75CW
CARDIOID CONDENSER HEADWORN MICROPHONE WITH 55" CABLE TERMINATED WITH LOCKING 4-PIN HRS-TYPE
ATM75CW
CARDIOID CONDENSER HEADWORN MICROPHONE WITH 55" CABLE TERMINATED WITH LOCKING 4-PIN HRS-TYPE
- UM : EA
- Estimated Weight: 0.4

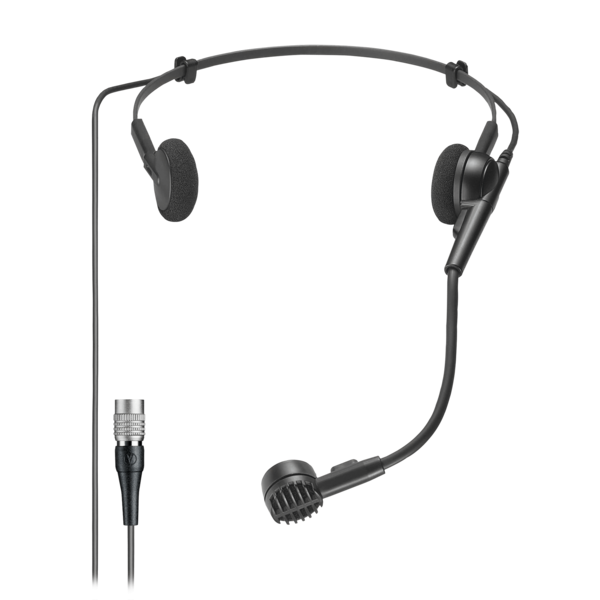

With a pivot-mounted flexible boom that can be positioned on either the left or right side of the head, the ATM75 headworn microphone delivers professional-quality vocal pickup with hands-free operation. Includes AT8139L large windscreen, AT8139S small windscreen, and AT8439 cable clip.
55" (1.4 m) permanently attached miniature cable terminated with a locking 4-pin connector for use with Audio-Technica cW-style body-pack wireless transmitters.
Features
Professional-quality vocal pickup with hands-free operation
Low-visibility headband provides stable, comfortable fit
Pivot-mounted flexible microphone
Cardioid polar pattern improves isolation of desired sound source
|
Microphone |
|
|
Element |
Fixed-charge back plate, permanently polarized condenser |
|
Polar Pattern |
Cardioid |
|
Frequency Response |
100-13,000 Hz |
|
Low Frequency Roll Off |
80 Hz, 18 dB/octave (wired only) |
|
Open Circuit Sensitivity |
PHANTOM: -51 dB (2.8 mV) re 1V at 1 Pa, BATTERY: -53 dB (2.2 mV) re 1V at 1 Pa |
|
Maximum Input Sound Level |
PHANTOM: 132 dB SPL, 1 kHz at 1% T.H.D, BATTERY: 121 dB SPL, 1 kHz at 1% T.H.D. |
|
Dynamic Range |
PHANTOM: 96 dB, 1 kHz at Max SPL, BATTERY: 85 dB, 1 kHz at Max SPL |
|
Signal-to-Noise Ratio |
58 dB, 1 kHz at 1 Pa |
|
Phantom Power Requirements |
11-52V DC, 2 mA typical |
|
Battery Type |
1.5V AA/UM3 (wired only) |
|
Battery Current/Life |
0.4 mA / 2000 hours typical (alkaline) (wired only) |
|
Switches |
Off, on-flat, on-roll-off (wired only) |
|
Weight (Microphone) |
2.1 oz (60 g) |
|
Weight (Power Module) |
4.9 oz (139 g) (wired only) |
|
Cable |
4.6' (1.4 m) long (permanently attached to microphone), 0.11" (2.8 mm) diameter, 2-conductor shielded cable(termination dependent) |
|
Dimensions |
Microphone: 20.4 mm (0.80") diameter, Power module (wired only): 84.0 mm (3.31") H x 63.0 mm (2.48") W x 22.0 mm (0.87") D, Headset: 120.0 mm (4.72") nominal at widest point, 80.5 mm (3.17") flexible boom |
|
Dimensions (Power Module) |
3.31" (84.0 mm) H x 2.48" (63.0 mm) W x 0.87" (22.0 mm) D |
|
Dimensions (Headset) |
4.72" (120.0 mm) nominal at widest point, |
|
3.17" (80.5 mm) flexible boom |
|
|
Dimensions (Microphone) |
0.80" (20.4 mm) diameter |
|
Output Connector (Power Module) |
Integral 3-pin XLRM-type (wired only) |
|
Accessories Included |
AT8531 power module (wired only); AT8439 clothing clip; AT8139L large windscreen; AT8139S small windscreen; battery (wired only) |
|
Audio-Technica Case Style |
M19 |
