ATW-1423/L | SYSTEM 20 PRO DUAL (HANDHELD, BODYPACK WITH LAVALIER MICROPHONE) SYSTEM

ATW-1423/L
SYSTEM 20 PRO DUAL (HANDHELD, BODYPACK WITH LAVALIER MICROPHONE) SYSTEM

The Audio-Technica ATW-1423/L is a dual-channel wireless system from the System 20 PRO series, offering unmatched versatility with both handheld and lavalier microphone transmitters in a single package. Operating in the 2.4 GHz range to avoid TV and DTV interference, the system ensures clear, consistent audio with features like automatic frequency selection, 24-bit/48 kHz digital audio, and instantaneous channel selection syncing. The receiver includes two independent channels with individual balanced XLR and unbalanced ¼" outputs, allowing simultaneous operation of both mics. Designed for flexible installation, the receiver chassis can be rack-mounted or used remotely with detachable receivers for added versatility. Ideal for houses of worship, corporate AV, live presentations, and educational environments, the ATW-1423/L delivers professional-grade performance in a compact, user-friendly system.

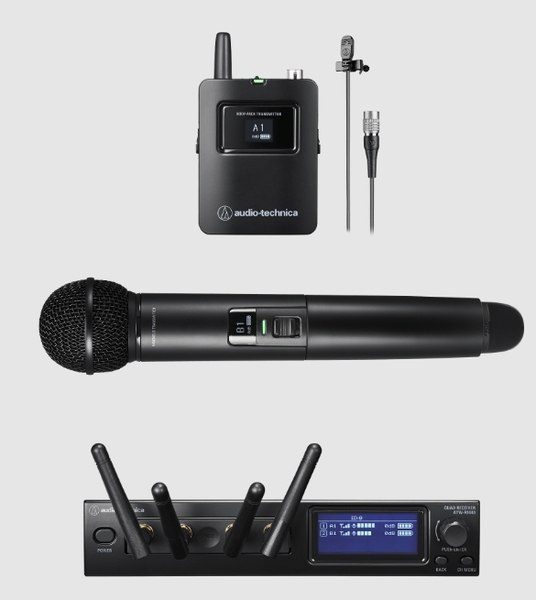

This System 20 Digital Wireless System includes: one ATW-R1440 4-channel receiver, one ATW-T1402 handheld microphone transmitter, one ATW-T1401 body-pack transmitter, and one MT830cW lavalier microphone.

Features

• Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
• Plug-and-play operation in the 2.4 GHz range – completely free from TV interference
• User can switch between Standard mode (10 channels) and HD mode (20 channels) to minimize latency or maximize channel count, respectively
• Receiver units can be docked in the chassis or mounted remotely (up to 328 feet away) via Ethernet cable for added versatility
• Up to five chassis can be linked and used simultaneously
• Each receiver channel can be paired with up to four transmitters, allowing users to instantly switch between different transmitter configurations
• Chassis’ System ID Display shows RF signal level, system ID, transmitter battery level, and system link status
• Each half-rack receiver chassis comes with a short and a long rack ear, and two long ears can be combined as a joining plate to secure two chassis in a full rack space
• Compatible with Audio-Technica’s Wireless Manager software for centralized management of system settings and operations
• Auto-lock function prevents unintended operations like turning off the power or displaying the channel select screen
• AES128 encryption for security
• Compatible with Syslog protocol
• Ability to configure, monitor, and save device settings as projects in Wireless Manager
• Transmitters and receivers include OLED screens for optimal readout of key settings and alerts
• Water- and sweat-resistant cW-style connector on body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cW-style locking 4-pin connector
• Charging terminals on body-pack and handheld transmitters work with ATW-CHG3/ATW-CHG3a and ATW-CHG3N/ATW-CHG3Na charging docks to recharge NiMH batteries
• Supports mixed output for situations with limited input channels
