ATW-A49A | DIRECTIONAL UHF LPDA ANTENNA PAIR (470–950 MHZ) WITH 6 DB GAIN AND 50-OHM IMPEDANCE FEATURES LOW-
ATW-A49A
DIRECTIONAL UHF LPDA ANTENNA PAIR (470–950 MHZ) WITH 6 DB GAIN AND 50-OHM IMPEDANCE FEATURES LOW-
ATW-A49A
DIRECTIONAL UHF LPDA ANTENNA PAIR (470–950 MHZ) WITH 6 DB GAIN AND 50-OHM IMPEDANCE FEATURES LOW-
- UM : EA

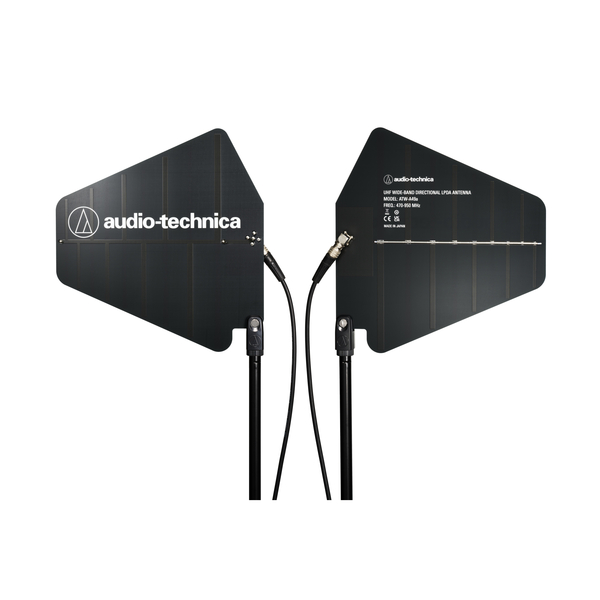

Pair of UHF wide-band directional LPDA (log periodic dipole array) antennas provide enhanced signal pickup for UHF wireless systems throughout a wide band range (470-950 MHz). Each antenna paddle is matched to 50 ohms impedance with an integral high-quality low-loss BNC connector; 6 dB gain. For permanent or temporary installation; mounts to 5/8"-27 threads.
Antenna & Distribution | |
Polarization | 100°, 3 dB beam width |
Frequency Range | 470 to 950 MHz |
Impedance | 50 ohms typical |
Gain | 6 dBi typical |
Connections | BNC-J |
Dimensions | 268 mm (10.6”) × 30 mm (1.2”) × 285 mm (11.2”) (W × D × H) |
Typical VSWR | = 1.7 |
Weight | 316 g (11 oz) |
Accessories | 5/8”-27 to 3/8”-16 threaded adapter |
