ATW-CHG2A |

  • MAP: $299.00 / EA
  • List Price: $299.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 10
  • Sign In or Submit RFQ for accurate lead times
Click image to enlarge

ATW-CHG2A

  • UM : EA
  • Estimated Weight: 2.0

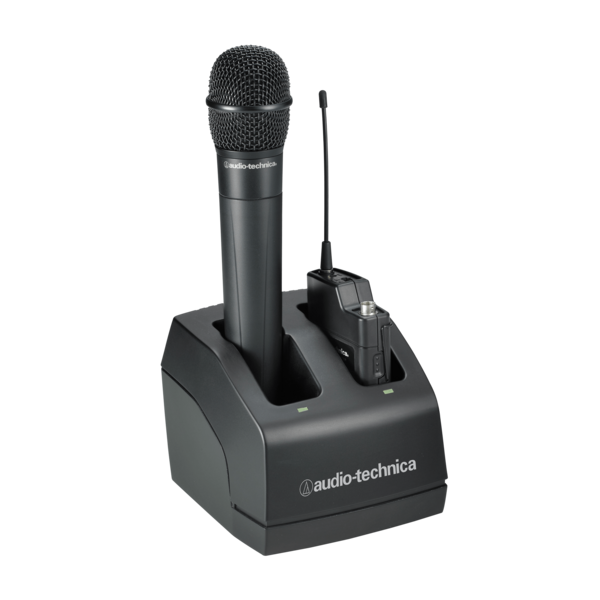

This two-bay recharging station provides power to recharge NiMH batteries in two ATW-T220c handheld transmitters and/or ATW-T210c UniPak® transmitters in any combination. Maintenance charging prevents battery self-discharge until the transmitter is removed from charger. The charger draws power from a standard wall outlet.

SPECIFICATIONS

Input Rating: 12V DC, 230 mA (maximum)
Output Rating: 3.2V DC, 230 mA x2
Charging Time: Approx. 10 hours (1900 mAh Ni-MH)
Operating Temperature: 0~+40º C
Dimensions:  Approx. 131.0 mm (5.16") W x 130.0 mm (5.12") D x 105.0 mm (4.13") H
Weight:  Approx. 40 g (1.4 oz)

Features

  • NiMH batteries are charged within the transmitters
  • Versatile unit charges ATW-T220c handheld transmitters and/or ATW-T210c UniPak® transmitters (in any combination)
  • Built-in safety feature monitors cell voltage and automatically turns off the unit if problems are detected
  • Automatic shut-off if alkaline (non-rechargeable) batteries are installed
  • Automatic shut-off if damaged batteries are installed
  • Maintenance charging prevents battery self-discharge until the transmitter is removed from charger
