ATW-CHG6/8620 | HANDHELD AND BODY-PACK CHARGER W/RACK TRAY

ATW-CHG6/8620
HANDHELD AND BODY-PACK CHARGER W/RACK TRAY

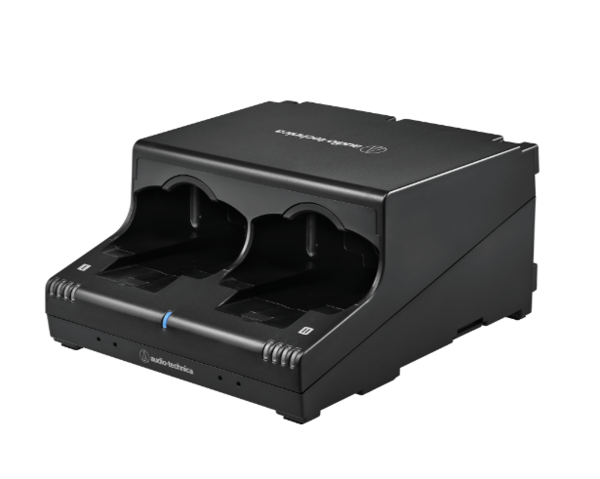

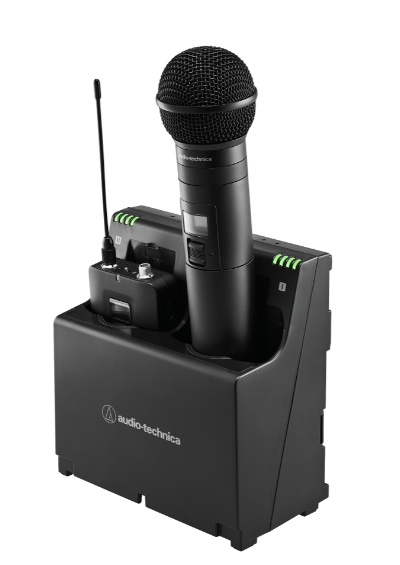

The ATW-CHG6 two-bay charging station is used to charge D50 wireless system body-pack (ATW-DT3201) and handheld (ATW-DT3202) transmitters. The charger can also accept the ATW-CHGA6 single battery charger. Up to three ATW-CHG6 charging stations can be installed in a single 2U rack space by using the included AT8620 rack-mount tray. Up to four charging stations can be linked with Cat5e cable and powered by a single AC adapter; up to three stations can be linked and powered by PoE+.

Indicator lamps on the front of the station allow users to easily monitor charging status and battery level, which can also be viewed in the Wireless Manager software. Transmitter firmware can be updated while transmitters are docked in the charging station.

Features

• Two-bay charging station for charging D50 wireless system body-pack and handheld transmitters

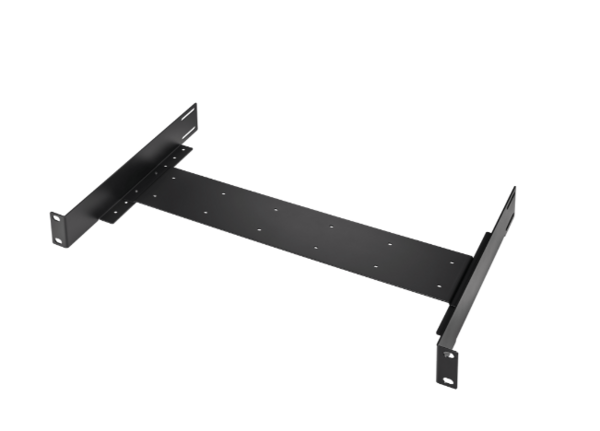

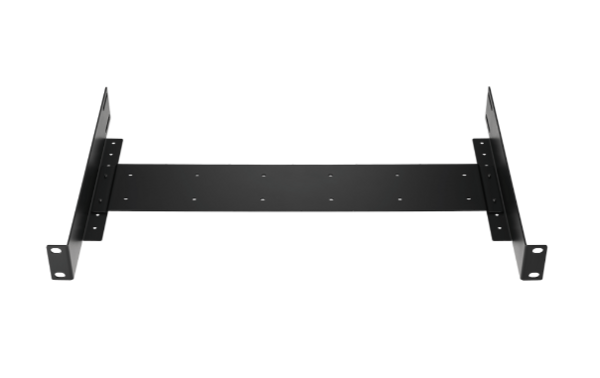

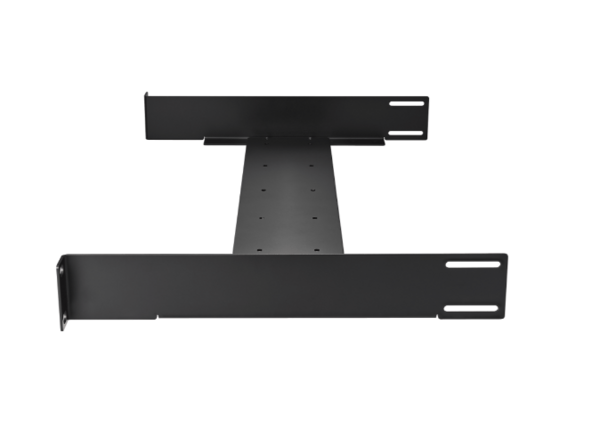

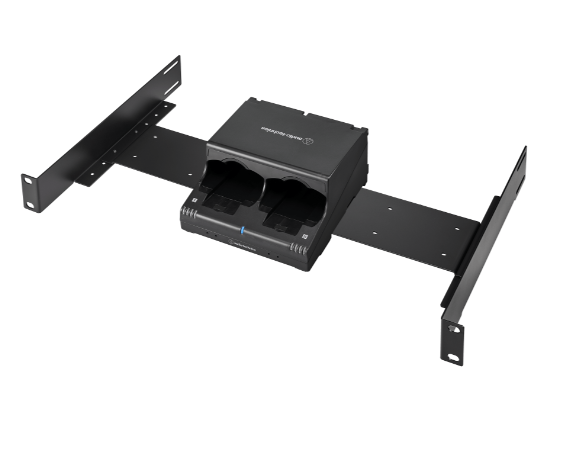

• Included AT8620 rack-mount tray allows three ATW-CHG6 charging stations to be mounted in a 2U space
• Up to four charging stations can be linked with Cat5e cable and powered by a single AC adapter; up to three stations can be linked and powered by PoE+
• Charging status and battery level can be monitored via the station’s LED indicators or in Audio-Technica’s Wireless Manager
• Two microphone hangers are included for convenient lavalier mic storage
• Transmitter firmware can be updated while transmitters are docked in the charging station
• Charging station can be mounted vertically or horizontally outside of rack tray if necessary
• Includes: ATW-CHG6 charger, mounting plate, two lavalier mic hangers, link cables to connect multiple chargers, AT8620 rack-mount tray
