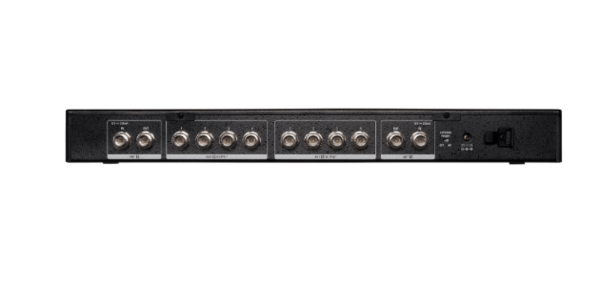

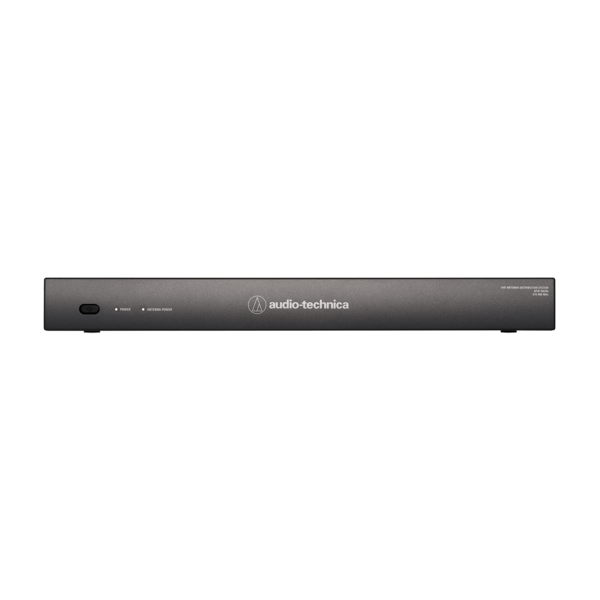

ATW-DA49A | 4-CHANNEL ACTIVE UNITY-GAIN ANTENNA DISTRO (470-990 MHZ) WITH CASCADE OUTPUTS FOR CHANNEL EXPANSION.

  • MAP: $599.00 / EA
  • List Price: $599.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
4-CHANNEL ACTIVE UNITY-GAIN ANTENNA DISTRO (470-990 MHZ) WITH CASCADE OUTPUTS FOR CHANNEL EXPANSION.
4-CHANNEL ACTIVE UNITY-GAIN ANTENNA DISTRO (470-990 MHZ) WITH CASCADE OUTPUTS FOR CHANNEL EXPANSION.
Click image to enlarge
4-CHANNEL ACTIVE UNITY-GAIN ANTENNA DISTRO (470-990 MHZ) WITH CASCADE OUTPUTS FOR CHANNEL EXPANSION.
4-CHANNEL ACTIVE UNITY-GAIN ANTENNA DISTRO (470-990 MHZ) WITH CASCADE OUTPUTS FOR CHANNEL EXPANSION.

ATW-DA49A
4-CHANNEL ACTIVE UNITY-GAIN ANTENNA DISTRO (470-990 MHZ) WITH CASCADE OUTPUTS FOR CHANNEL EXPANSION.

  • UM : EA

UHF Antenna Distribution System

ATW-DA49a UHF Antenna Distribution System - Active UHF diversity antenna distribution system, Wide-band 470-990 MHz and Enables one pair of antennas to feed multiple wireless systems

Antenna & Distribution

Antenna Power (optional)

12V DC, 250 mA max.

Current Consumption

200 mA ± 50 mA at 12 V DC

Gain

+1.0dB typical (within specified bandwidth)

Input

2 x 1 inputs

OIP3

+30dBm typical (within specified bandwidth)

Output

2 x 4 outputs + 1 cascade output

Termination Type

BNC Female

Operating Bandwidth

470-950 MHz

Power Supply

100-240V AC (50/60 Hz) to 12V DC 1A (centre positive) switched mode external power supply

Dimensions

420 x 180 x 144 mm

Weight

1.5 kg

Accessories

PSU, rack ears (short), BNC cable x8
