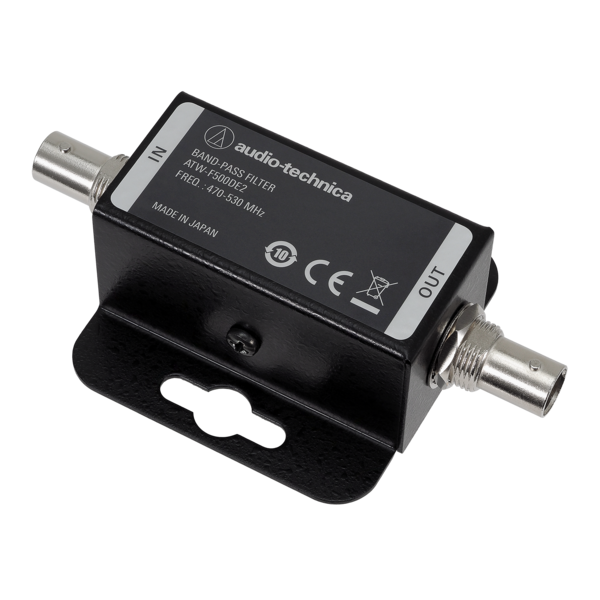

ATW-F500DE2 | BAND-PASS FILTER 470-530 MHZ

  • MAP: $419.00 / EA
  • List Price: $419.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times
BAND-PASS FILTER 470-530 MHZ
BAND-PASS FILTER 470-530 MHZ
Click image to enlarge
BAND-PASS FILTER 470-530 MHZ
BAND-PASS FILTER 470-530 MHZ

ATW-F500DE2
BAND-PASS FILTER 470-530 MHZ

  • UM : EA

Band-Pass Filter Pair

These band-pass filters help eliminate “out-of-band” signals that can saturate the front end of wireless microphone receivers. They can also greatly improve dynamic range by reducing noise and third-party interference outside the operating range.

Each is fitted with industry-standard BNC-type connectors, requiring no power or user configuration and allowing easy connection to wireless microphone antennas to reduce noise and improve wireless system performance.

Note, the maximum pass-through current is 420 mA. To avoid malfunction, make sure the pass-through current is less then 420 mA.



Antenna & Distribution

Frequency Range

470 to 530 MHz (ATW-F500DE2)
530 to 590 MHz (ATW-F560EE1)
590 to 650 MHz (ATW-F620EF1)
650 to 700 MHz (ATW-F675FG1)

Impedance

50 ohms

High Frequency Transmission Loss

4 dB (typical)

Current Pass Through

420 mA

Operating Temperature Range

Allowable: -10 to +60 °C
Recommended: +15 to +35 °C

Connections

BNC-J x 2

Dimensions

99.8 mm × 60 mm x 30 mm (W × D × H)

Weight

136 g
