ATW-R1440 | SYSTEM 20 PRO RECEIVER 2.4 GHZ

ATW-R1440
SYSTEM 20 PRO RECEIVER 2.4 GHZ

MAP: $659.00 / EA
List Price: $659.00 / EA
Log in to see if custom discounts apply
Case Quantity: 5
Sign In or Submit RFQ for accurate lead times

Quantity: EA

Click image to enlarge

ATW-R1440
SYSTEM 20 PRO RECEIVER 2.4 GHZ

UM : EA
Estimated Weight: 5.0

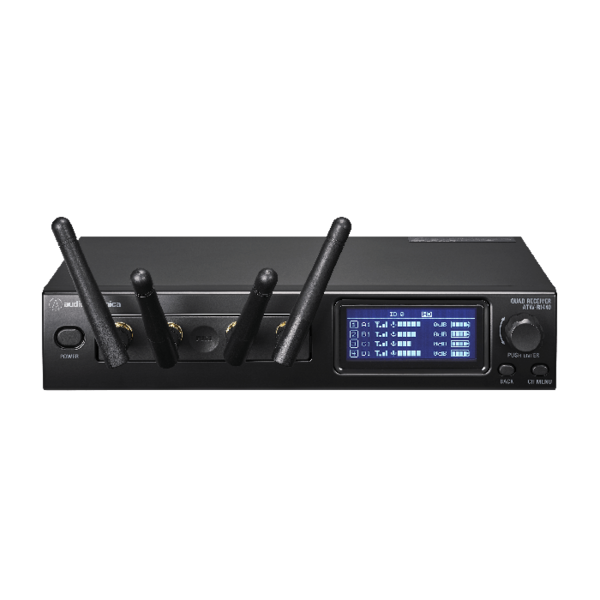

System 20 PRO 4-channel receiver.

Features:

Half-rack chassis capable of receiving up to four transmitters
Each receiver channel can be paired with up to four transmitters, allowing users to instantly switch between different transmitter configurations
Switch between Standard (10 channels) and HD (20 channels) modes
Receiver units can be docked in the chassis or mounted remotely (up to 328 feet away) via Ethernet cable for added versatility
Up to five chassis can be linked and used simultaneously
Monitor transmitter status, audio level, remaining battery time, and other information in A-T Wireless Manager
Auto-lock function prevents unintended operations

Operating Frequencies	2,402~2,480MHz
Dynamic Range	120dB (A-weighted), typical
Total Harmonic Distortion	< 0.05%, typical
Maximum Simultaneous Use (recommended)	Standard: 10 channels HD mode: 20 channels It depends on the region and environment.
System Frequency Response	20 to 20,000Hz Varies depending on the microphone to be installed.
Delay	Standard: 2.8ms HD mode: 6.7ms
Audio Sampling Rate	Standard: 24bit/48kHz HD mode: 24bit/48kHz
Encryption Method	AES128
