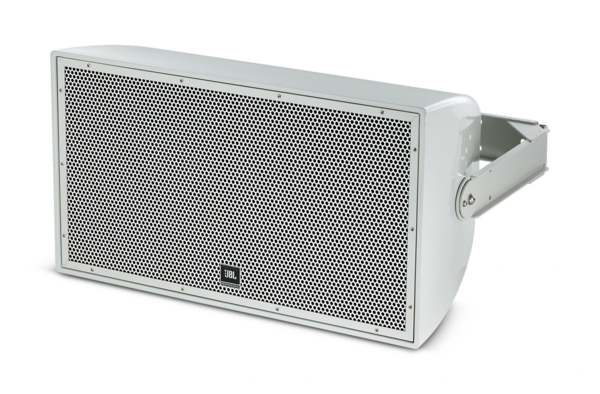

AW266 | HIGH OUTPUT 12" 2-WAY FULL-RANGE 60 X 60 LOUDSPEAKER-GRAY. PRICED AS EACH.
AW266
HIGH OUTPUT 12" 2-WAY FULL-RANGE 60 X 60 LOUDSPEAKER-GRAY. PRICED AS EACH.
AW266
HIGH OUTPUT 12" 2-WAY FULL-RANGE 60 X 60 LOUDSPEAKER-GRAY. PRICED AS EACH.
- UM : EA

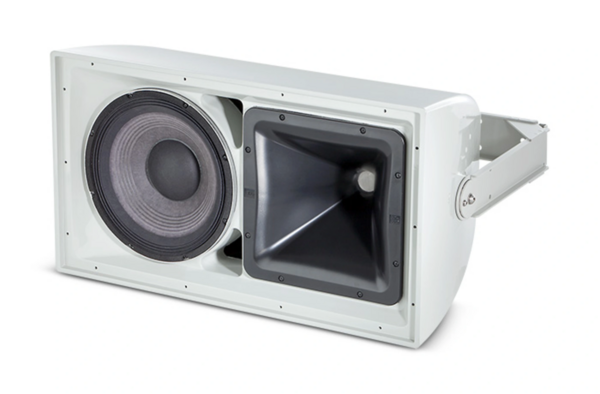

The AW266 is a high-power, lightweight, two-way full-range loudspeaker system designed for all-weather use. It features a 12-inch (300 mm) low-frequency driver with a dual voice coil and dual magnetic gap JBL Differential Drive 2262H and a 1.5-inch (38 mm) exit, 3-inch (75 mm) voice coil compression driver 2432H for high frequencies. The loudspeaker includes a large-format Progressive Transition waveguide providing a 60° by 60° coverage pattern and can be mounted in either vertical or horizontal orientation. The enclosure is constructed from multilayer glass composite with internal bracing to enhance low-frequency performance.
The AW266 is equipped with a 400 W, 70/100 V transformer and features a 14-gauge stainless steel baffle backed by open-cell foam and stainless steel mesh for environmental protection. A heavy-duty, weather-treated U-type mounting bracket is included, allowing for installation on flat surfaces or in 90° corners.
Features:
- Weather-Resistant
- All Fiberglass Enclosure
- 60° x 60° Coverage
- 2262H Differential Driver Low-Frequency Driver
- 2432H High Frequency Compression Driver
- Large PT Progressive Transition Waveguide for Pattern Control and Low Distortion
- Available in Gray and Black Finish
- 400 W Power
- 70/100V Transformer Included
- U-type Mounting Bracket Included
| Frequency Range | 40 Hz – 20 kHz |
|---|---|
| Frequency Response | 51 Hz – 18 kHz |
| Coverage Pattern | 60° x 60° waveguide |
| Directivity Factor (Q) | 15.8 |
| Directivity Index (DI) | 12 dB |
| Crossover Frequency | 1.1 kHz |
| System Power Rating | 500 W (2000 W peak) 100 hrs |
| Maximum SPL (1m) | 126 dB SPL (132 dB peak) |
| System Sensitivity (1W @ 1m) | 98 dB |
| Transformer Taps | 70V: 400 W, 200 W, 100 W; 100V: 400 W, 200 W |
