AW266-LS | 12" 2-WAY ALL WEATHER LOUDSPEAKER WITH EN54-24 CERTIFICATION. PRICED AS EACH.
AW266-LS
12" 2-WAY ALL WEATHER LOUDSPEAKER WITH EN54-24 CERTIFICATION. PRICED AS EACH.
AW266-LS
12" 2-WAY ALL WEATHER LOUDSPEAKER WITH EN54-24 CERTIFICATION. PRICED AS EACH.
- UM : EA

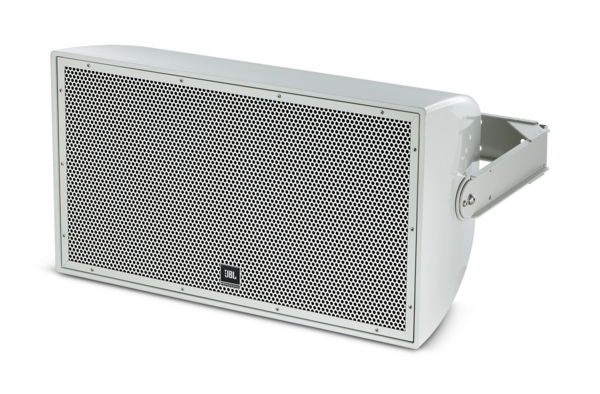

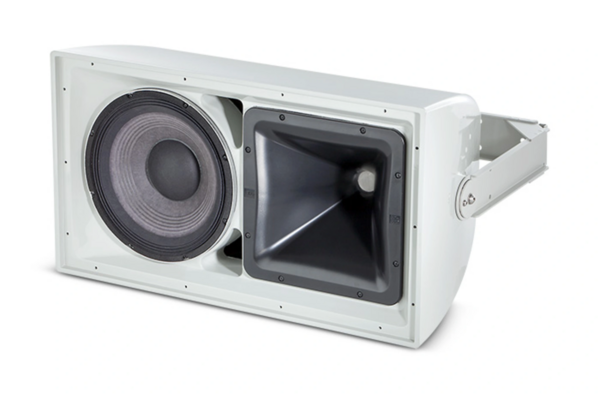

The AW266-LS is a high-power, lightweight, two-way, full-range loudspeaker system designed for life safety applications. It features a 12-inch (300 mm) low-frequency driver employing JBL's Differential Drive technology with dual voice coils and dual magnetic gaps (model 2262H), and a high-frequency compression driver (model 2432H) with a 1.5-inch (38 mm) exit and 3-inch (75 mm) voice coil. The system includes a large-format Progressive Transition waveguide that provides a 60° by 60° coverage pattern.
The loudspeaker is sealed in LS models for protection and can be installed in either vertical or horizontal orientation. The design supports high power capacity suitable for all-weather environments. The LS Model has sealed parts.
Features:
- Weather-Resistant
- All Fiberglass Enclosure
- EN 54-24 Compliant
- 60° x 60° Coverage
- 2262H Low-Frequency Driver
- 2432H High Frequency Compression Driver
- Large PT Progressive Transition waveguide
- 400 W Power
- 70/100V Transformer Included
- U-type Mounting Bracket Included
| Frequency Range | 54 Hz – 20 kHz |
|---|---|
| Frequency Response | 102 Hz – 18 kHz |
| Coverage Pattern | 60° x 60° waveguide |
| Directivity Factor (Q) | 15.8 |
| Directivity Index (DI) | 12 dB |
| Crossover Frequency | 1.1 kHz |
| System Power Rating | 400 W (1600 W peak) 100 hrs |
| Maximum SPL (1m) | 125 dB SPL (131 dB peak) |
| System Sensitivity (1W @ 1m) | 98 dB SPL |
| Nominal Impedance | 8ohms |
