AW266-LS-BK | 12" 2-WAY ALL WEATHER LOUDSPEAKER WITH EN54-24 CERTIFICATION, BLACK. PRICED AS EACH.
AW266-LS-BK
12" 2-WAY ALL WEATHER LOUDSPEAKER WITH EN54-24 CERTIFICATION, BLACK. PRICED AS EACH.
AW266-LS-BK
12" 2-WAY ALL WEATHER LOUDSPEAKER WITH EN54-24 CERTIFICATION, BLACK. PRICED AS EACH.
- UM : EA

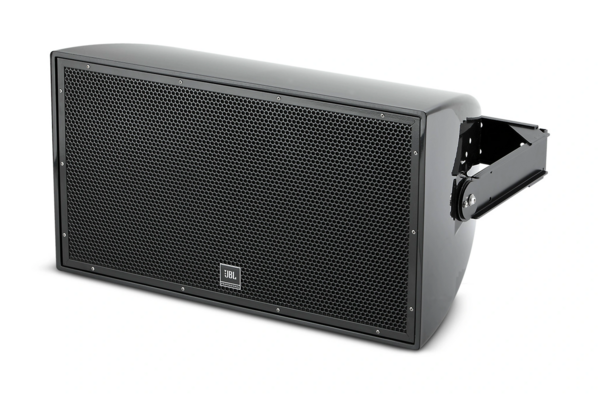

The AW266-LS-BK is a high-power, 2-way, full-range loudspeaker designed for life safety applications. It features a 12-inch (300 mm) low-frequency driver with a differential drive dual voice coil and dual magnetic gap (model 2262H), alongside a high-frequency 1.5-inch (38 mm) exit compression driver with a 3-inch (75 mm) voice coil (model 2432H). The loudspeaker is built for all-weather use and includes sealed components on LS models.
The system incorporates a large-format Progressive Transition waveguide providing a 60° x 60° coverage pattern. The loudspeaker supports both vertical and horizontal mounting orientations. The LS Model has sealed parts.
Features:
- Weather-Resistant
- Fiberglass Enclosure
- EN 54-24 Compliant
- 60° x 60° Coverage
- 2262H Differential Drive Low-Frequency Driver
- 2432H High-Frequency Compression Driver
- Large PT Progressive Transition Waveguide
- 400 W Power
- 70/100V Transformer Included
- U-type Mounting Bracket Included
| Frequency Range | 54 Hz – 20 kHz |
|---|---|
| Frequency Response | 102 Hz – 18 kHz |
| Coverage Pattern | 60° x 60° waveguide |
| Directivity Factor (Q) | 15.8 |
| Directivity Index (DI) | 12 dB |
| Crossover Frequency | 1.1 kHz |
| System Power Rating | 400 W (1600 W peak) |
| Maximum SPL (1m) | 125 dB SPL (131 dB peak) |
| System Sensitivity (1W @ 1m) | 98 dB SPL |
| Nominal Impedance | 8ohms |
