AW295-LS | 12" 2-WAY ALL WEATHER LOUDSPEAKER WITH EN54-24 CERTIFICATION. PRICED AS EACH.

  • MAP: $4,999.00 / EA
  • List Price: $4,999.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
12" 2-WAY ALL WEATHER LOUDSPEAKER WITH EN54-24 CERTIFICATION. PRICED AS EACH.
Click image to enlarge

AW295-LS
12" 2-WAY ALL WEATHER LOUDSPEAKER WITH EN54-24 CERTIFICATION. PRICED AS EACH.

  • UM : EA

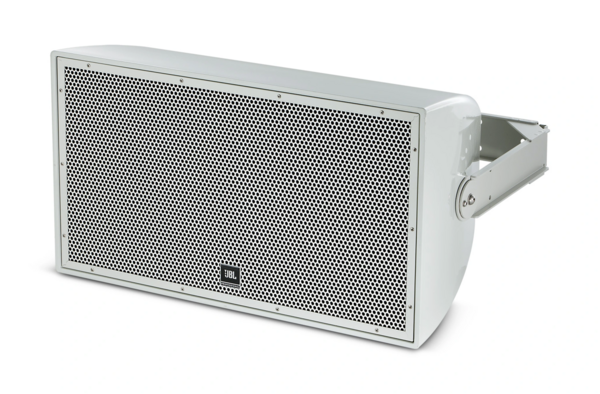

The AW295-LS is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 90° x 50° coverage. The waveguide is rotatable so the loudspeaker system can used in either the vertical or horizontal orientation.

Features:

  • Weather-Resistant
  • Fiberglass Enclosure
  • EN 54-24 Life Safety Compliant
  • 90° x 50° Coverage
  • 2262H Low-Frequency Driver
  • 2432H High-Frequency Driver
  • PT Progressive Transition Waveguide
  • Rotatable Waveguide
  • Gray and Black Finish
  • 400 W Power
  • 70/100V Transformer Included
  • U-type Mounting Bracket Included
Frequency Range 74 Hz – 20 kHz
Frequency Response 106 Hz – 18 kHz
Coverage Pattern 90° x 50°, rotatable waveguide
Directivity Factor (Q) 12.6
Directivity Index (DI) 11 dB
Crossover Frequency 1.3 kHz
System Power Rating 400 W (1600 W peak), 100 hrs
Maximum SPL (1m) 125 dB continuous average, 131 dB peak
System Sensitivity (1W @ 1m) 98 dB SPL
Nominal Impedance 8 ohms
