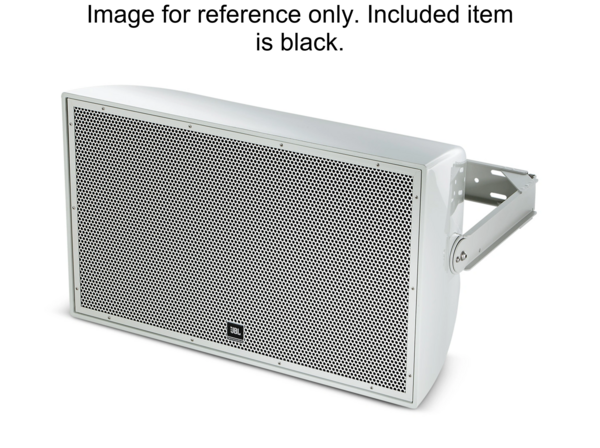

AW526-BK | HIGH OUTPUT 15" 2-WAY FULL-RANGE 120 X 60 LOUDSPEAKER-BLACK. PRICED AS EACH.

AW526-BK is a high-power, lightweight, 2-way full-range loudspeaker featuring a 15-inch (380 mm) low-frequency driver with dual voice coil and dual magnetic gap technology (JBL 2265H-1) and a 1.5-inch (38 mm) exit compression driver with a 3-inch (75 mm) voice coil (JBL 2432H). The loudspeaker incorporates a rotatable large-format Progressive Transition waveguide providing a coverage pattern of 120° horizontal by 60° vertical, allowing use in both vertical and horizontal orientations. It includes a 400 W 70/100V transformer for power handling.

The enclosure is constructed from multilayer glass composite with internal bracing to enhance low-frequency performance. Mounting is facilitated by a heavy-duty U-type weather-treated bracket suitable for flat surfaces or 90° corners. A 14-gauge stainless steel baffle with open-cell foam and stainless steel mesh backing protects the components against environmental exposure. The design is suitable for outdoor applications and is part of JBL’s AE Series.

Features:

• Weather-Resistant
• All Fiberglass Enclosure
• 120° x 60° Coverage
• 2265H-1 Differential Driver Low-Frequency Driver
• 2432H High Frequency Compression Driver
• Large PT Progressive Transition Waveguide for pattern control and low distortion
• Rotatable Waveguide for vertical or horizontal orientation
• Gray and Black finish options
• 400 W Power
• 70/100V Transformer Included
• U-type Mounting Bracket Included
