AW526-LS | 15" 2-WAY ALL WEATHER LOUDSPEAKER WITH EN54-24 CERTIFICATION. PRICED AS EACH.
AW526-LS
15" 2-WAY ALL WEATHER LOUDSPEAKER WITH EN54-24 CERTIFICATION. PRICED AS EACH.
AW526-LS
15" 2-WAY ALL WEATHER LOUDSPEAKER WITH EN54-24 CERTIFICATION. PRICED AS EACH.
- UM : EA

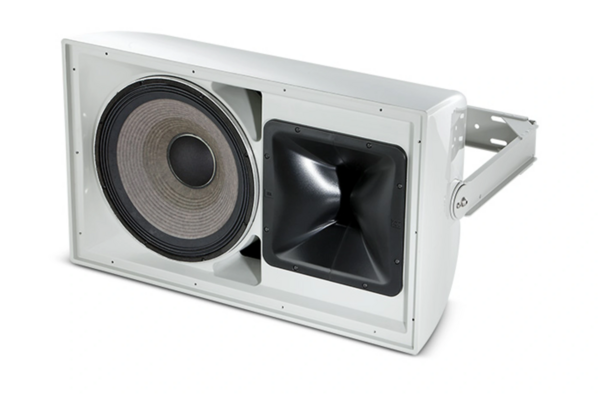

The AW526-LS is a high-power, two-way, full-range loudspeaker designed for life safety applications. It features a JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and a 2432H high-frequency compression driver with a 38 mm (1.5 in) exit and a 75 mm (3 in) voice coil. The loudspeaker includes a large-format Progressive Transition waveguide that delivers 120° x 60° coverage and is rotatable for vertical or horizontal mounting orientations.
This model is EN 54-24 compliant and equipped with a 400 W 70/100V transformer. The LS models have sealed parts to meet environmental requirements.
Features:
- Weather-resistant
- Fiberglass enclosure
- EN 54-24 compliant
- 120° x 60° coverage
- 2265H low-frequency driver
- 2432H high-frequency driver
- Progressive Transition waveguide
- Rotatable waveguide
- Available in gray and black
- 400 W power
- 70/100V transformer included
- U-type mounting bracket included
| Frequency Range (-10dB) | 39 Hz – 20 kHz |
|---|---|
| Frequency Response (±3 dB) | 86 Hz – 17 kHz |
| Coverage Pattern | 120° x 60°, rotatable waveguide |
| Directivity Factor (Q) | 7.9 |
| Directivity Index (DI) | 9 dB |
| Crossover Frequency | 1.1 kHz |
| System Power Rating | 400 W (1600 W peak), 100 hrs |
| Maximum SPL (1m) | 127 dB-SPL continuous average (133 dB peak) |
| System Sensitivity (1W @ 1m) | 100 dB |
| Nominal Impedance | 8ohms |
