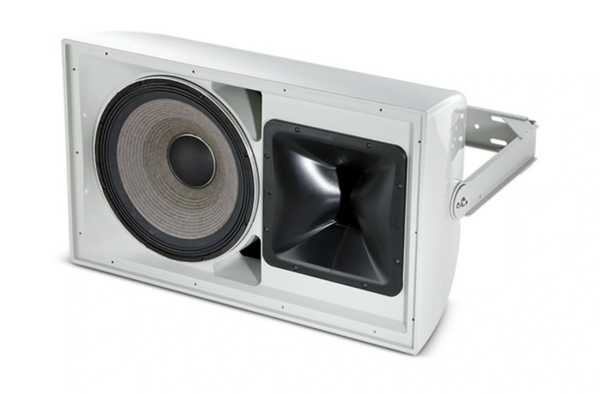

The AW566 is a high-power, two-way, full-range loudspeaker system featuring a 15-inch (380 mm) low-frequency driver with JBL Differential Drive technology and a 1.5-inch (38 mm) exit, 3-inch (75 mm) voice-coil compression high-frequency driver. It includes a large-format Progressive Transition waveguide providing 60° horizontal by 60° vertical coverage. The enclosure is constructed from multilayer glass composite with internal bracing to enhance low-frequency response. The loudspeaker supports both vertical and horizontal mounting orientations.

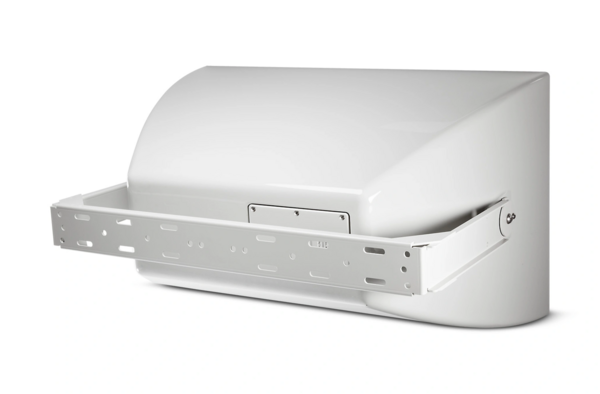

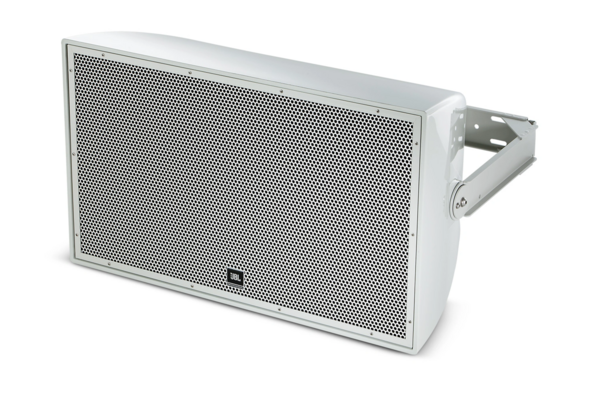

The front baffle is made of 14-gauge stainless steel with an open-cell foam and stainless steel mesh backing for environmental protection. The system includes a 400 W 70/100 V transformer and a weather-treated, heavy-duty U-type mounting bracket suited for flat surface or 90° corner installations. The AW566 is designed for all-weather use and is part of JBL’s AE Series loudspeakers.
Features:
- Weather-resistant
- All fiberglass enclosure
- 60° x 60° coverage
- 2265H-1 differential low-frequency driver
- 2432H high-frequency compression driver
- Large PT progressive transition waveguide for pattern control and low distortion
- Available in gray and black finish
- 400 W power
- 70/100V transformer included
- U-type mounting bracket included

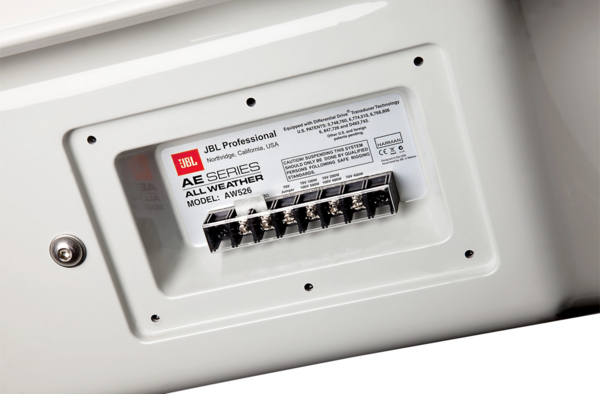

| Frequency Range (-10dB) | 35 Hz – 20 kHz |
|---|---|
| Frequency Response (±3 dB) | 54 Hz – 18 kHz |
| Coverage Pattern | 60° x 60° |
| Directivity Factor (Q) | 15.8 |
| Directivity Index (DI) | 12 dB |
| Crossover Frequency | 1.1 kHz |
| System Power Rating | 600 W (2400 W peak), 100 hrs |
| Maximum SPL (1m) | 128 dB-SPL cont avg (134 dB peak) |
| System Sensitivity (1w @ 1m) | 100 dB SPL |
| Transformer Taps | 70V: 400 W, 200 W, 100W; 100V: 400W, 200W |
