AW566-LS | 15" 2-WAY ALL WEATHER LOUDSPEAKER WITH EN54-24 CERTIFICATION. PRICED AS EACH.
AW566-LS
15" 2-WAY ALL WEATHER LOUDSPEAKER WITH EN54-24 CERTIFICATION. PRICED AS EACH.
AW566-LS
15" 2-WAY ALL WEATHER LOUDSPEAKER WITH EN54-24 CERTIFICATION. PRICED AS EACH.
- UM : EA

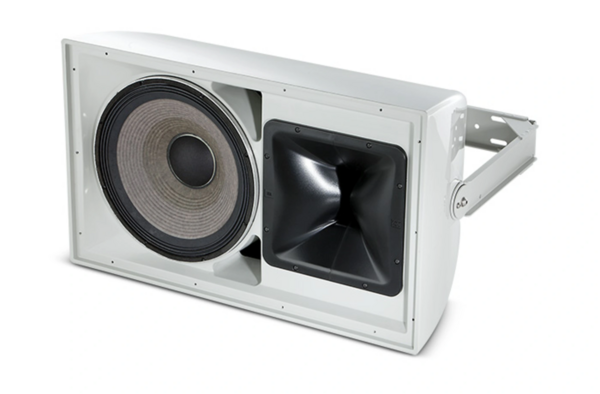

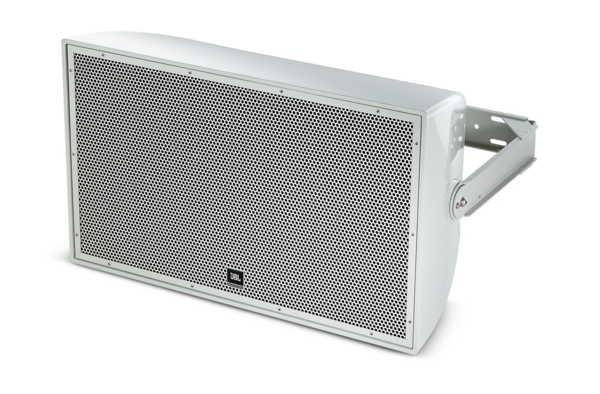

The AW566-LS is a high-power, lightweight, two-way all-weather loudspeaker designed for life safety applications. It features a 15-inch (380 mm) low-frequency driver with JBL Differential Drive dual voice coil and dual magnetic gap technology, model 2265H, paired with a 1.5-inch (38 mm) exit, 3-inch (75 mm) voice coil compression driver, model 2432H. The loudspeaker incorporates a large format Progressive Transition waveguide providing 60° by 60° coverage.
The AW566-LS loudspeaker system supports both vertical and horizontal mounting orientations. It is sealed on LS models and complies with the EN 54-24 standard for fire detection and fire alarm systems, making it suitable for life safety installations.
Features:
- Weather-Resistant
- All Fiberglass Enclosure
- EN 54-24 Compliant
- 60° x 60° Coverage
- 2265H Low-Frequency Driver
- 2432H High-Frequency Driver
- Large PT Progressive Transition Waveguide
- 400 W Power

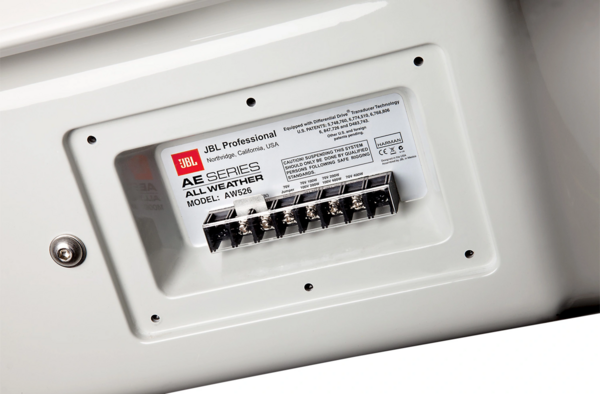

- 70/100V Transformer Included

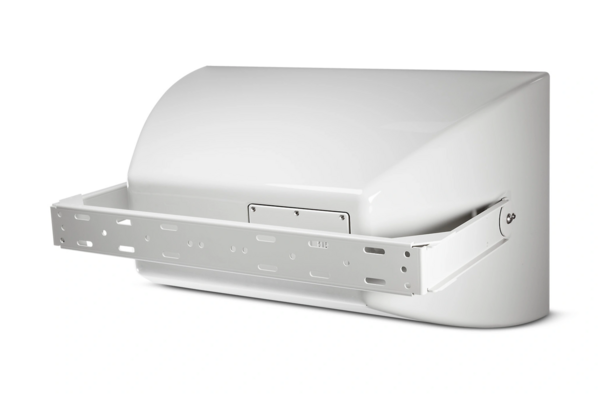

- U-type Mounting Bracket Included
| Frequency Range | 42 Hz – 20 kHz |
|---|---|
| Frequency Response | 89 Hz – 18 kHz |
| Coverage Pattern | 60° x 60°, rotatable waveguide |
| Directivity Factor (Q) | 15.8 |
| Directivity Index (DI) | 12 dB |
| Crossover Frequency | 1.1 kHz |
| System Power Rating | 400 W (1600 W peak), 100 hrs |
| Maximum SPL (1m) | 127 dB SPL continuous average (133 dB peak) |
| System Sensitivity (1W @ 1m) | 100 dB SPL |
| Nominal Impedance | 8ohms |
