AW566-LS-BK | 15" 2-WAY ALL WEATHER LOUDSPEAKER WITH EN54-24 CERTIFICATION, BLACK. PRICED AS EACH.
AW566-LS-BK
15" 2-WAY ALL WEATHER LOUDSPEAKER WITH EN54-24 CERTIFICATION, BLACK. PRICED AS EACH.
AW566-LS-BK
15" 2-WAY ALL WEATHER LOUDSPEAKER WITH EN54-24 CERTIFICATION, BLACK. PRICED AS EACH.
- UM : EA

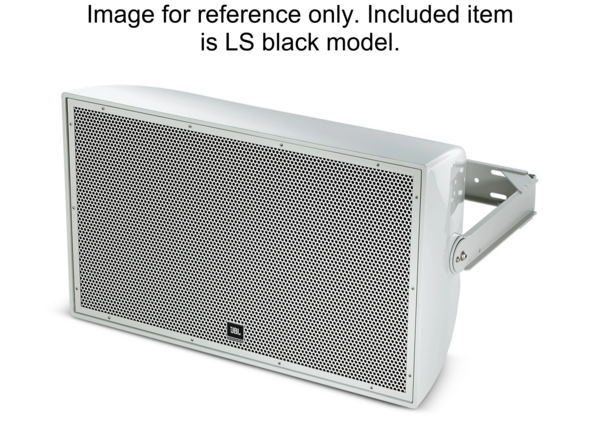

The AW566-LS-BK is a high-power, two-way, full-range loudspeaker designed for life safety applications, compliant with EN 54-24 standards. It features a 380 mm (15 in) low-frequency driver with JBL Differential Drive technology, including dual voice coils and dual magnetic gaps (model 2265H), paired with a 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil high-frequency compression driver (model 2432H). The loudspeaker utilizes a large-format Progressive Transition waveguide providing a 60° x 60° coverage pattern.
The enclosure and components are sealed in LS models to ensure durability in all-weather environments. The system is lightweight and supports both vertical and horizontal mounting orientations.
Features:
- Weather-Resistant
- All Fiberglass Enclosure
- EN 54-24 Compliant
- 60° x 60° Coverage
- 2265H Differential Drive Low-Frequency Driver
- 2432H High Frequency Compression Driver
- Large PT Progressive Transition Waveguide
- 400 W Power
- 70/100V Transformer Included
- U-type Mounting Bracket Included
| Frequency Range | 42 Hz – 20 kHz |
|---|---|
| Frequency Response | 89 Hz – 18 kHz |
| Coverage Pattern | 60° x 60°, rotatable waveguide |
| Directivity Factor (Q) | 15.8 |
| Directivity Index (DI) | 12 dB |
| Crossover Frequency | 1.1 kHz |
| System Power Rating | 400 W (1600 W peak), 100 hrs |
| Maximum SPL (1m) | 127 dB continuous average (133 dB peak) |
| System Sensitivity (1W @ 1m) | 100 dB SPL |
| Nominal Impedance | 8ohms |
