AW595 | HIGH OUTPUT 15" 2-WAY FULL-RANGE 90 X 50 LOUDSPEAKER-GRAY. PRICED AS EACH.

  • MAP: $5,410.00 / EA
  • List Price: $5,410.00 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
HIGH OUTPUT 15" 2-WAY FULL-RANGE 90 X 50 LOUDSPEAKER-GRAY. PRICED AS EACH.
HIGH OUTPUT 15" 2-WAY FULL-RANGE 90 X 50 LOUDSPEAKER-GRAY. PRICED AS EACH.
Click image to enlarge
HIGH OUTPUT 15" 2-WAY FULL-RANGE 90 X 50 LOUDSPEAKER-GRAY. PRICED AS EACH.
HIGH OUTPUT 15" 2-WAY FULL-RANGE 90 X 50 LOUDSPEAKER-GRAY. PRICED AS EACH.

AW595
HIGH OUTPUT 15" 2-WAY FULL-RANGE 90 X 50 LOUDSPEAKER-GRAY. PRICED AS EACH.

  • UM : EA

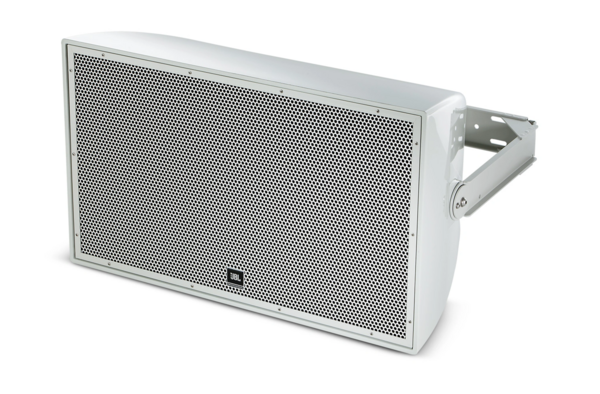

The AW595 is a high-power, two-way, full-range loudspeaker featuring a 15-inch (380 mm) low-frequency driver with JBL Differential Drive dual voice coil and dual magnetic gap 2265H-1, and a 1.5-inch (38 mm) exit, 3-inch (75 mm) voice-coil compression driver model 2432H. It incorporates a rotatable Progressive Transition waveguide designed for 90° horizontal by 50° vertical coverage, enabling use in both vertical and horizontal orientations. The enclosure is constructed from multilayer glass composite with internal bracing to enhance low-frequency response.

Features:

  • Weather-resistant
  • All fiberglass enclosure
  • 90° x 50° coverage
  • 2265H-1 Differential Driver low-frequency driver
  • 2432H high-frequency compression driver
  • Large PT Progressive Transition waveguide for pattern control and low distortion
  • Rotatable waveguide for vertical or horizontal orientation
  • Available in gray and black finish
  • 400 W power handling

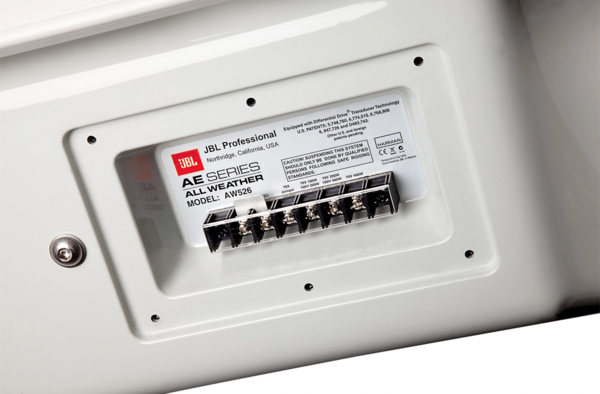

  • 70/100V transformer included
  • U-type mounting bracket included
Frequency Range 35 Hz – 20 kHz
Frequency Response 55 Hz – 19 kHz
Coverage Pattern 90° x 50°, rotatable waveguide
Directivity Factor (Q) 12.6
Directivity Index (DI) 11 dB
Crossover Frequency 1.2 kHz
System Power Rating 600 W (2400 W peak), 100 hrs
Maximum SPL (1m) 128 dB continuous avg (134 dB peak)
System Sensitivity (1W @ 1m) 100 dB SPL
Transformer Taps 70V: 400 W, 200 W, 100 W; 100V: 400 W, 200 W
