AW595-BK | HIGH OUTPUT 15" 2-WAY FULL-RANGE 90 X 50 LOUDSPEAKER-BLACK. PRICED AS EACH.
AW595-BK
HIGH OUTPUT 15" 2-WAY FULL-RANGE 90 X 50 LOUDSPEAKER-BLACK. PRICED AS EACH.
AW595-BK
HIGH OUTPUT 15" 2-WAY FULL-RANGE 90 X 50 LOUDSPEAKER-BLACK. PRICED AS EACH.
- UM : EA

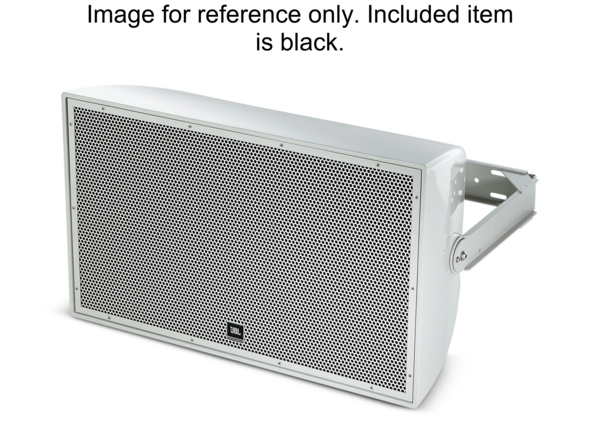

The AW595-BK is a high-power, two-way, full-range loudspeaker featuring a 15-inch (380 mm) low-frequency driver (JBL 2265H-1) with dual voice coils and dual magnetic gaps, and a compression driver with a 1.5-inch (38 mm) exit and 3-inch (75 mm) voice coil (JBL 2432H). The loudspeaker employs a large-format Progressive Transition waveguide that provides a coverage pattern of 90° horizontal by 50° vertical, which can be rotated to accommodate either vertical or horizontal mounting orientations. The system includes a 400 W transformer compatible with 70/100V line operation.
Features:
- Weather-resistant
- Fiberglass enclosure
- 90° x 50° coverage
- 2265H-1 differential low-frequency driver
- 2432H high-frequency compression driver
- Large PT progressive transition waveguide
- Rotatable waveguide for vertical or horizontal orientation
- Available in gray and black finish
- 400 W power handling
- 70/100V transformer included
- U-type mounting bracket included
| Frequency Range | 35 Hz – 20 kHz |
|---|---|
| Frequency Response | 55 Hz – 19 kHz |
| Coverage Pattern | 90° x 50°, rotatable waveguide |
| Directivity Factor (Q) | 12.6 |
| Directivity Index (DI) | 11 dB |
| Crossover Frequency | 1.2 kHz |
| System Power Rating | 600 W (2400 W peak), 100 hrs |
| Maximum SPL (1m) | 128 dB continuous average, 134 dB peak |
| System Sensitivity (1W @ 1m) | 100 dB SPL |
| Transformer Taps | 70V: 400 W, 200 W, 100 W; 100V: 400 W, 200 W |
