AW595-LS | 15" 2-WAY ALL WEATHER LOUDSPEAKER WITH EN54-24 CERTIFICATION. PRICED AS EACH.
AW595-LS
15" 2-WAY ALL WEATHER LOUDSPEAKER WITH EN54-24 CERTIFICATION. PRICED AS EACH.
AW595-LS
15" 2-WAY ALL WEATHER LOUDSPEAKER WITH EN54-24 CERTIFICATION. PRICED AS EACH.
- UM : EA

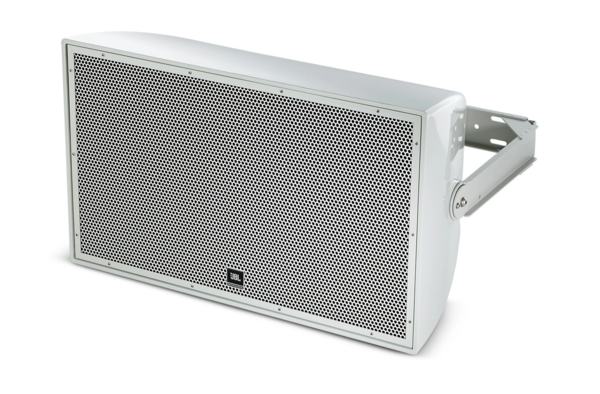

The AW595-LS is a high-power, two-way, full-range loudspeaker designed for all-weather and life safety applications. It incorporates a JBL Differential Drive dual voice coil and dual magnetic gap 2265H low-frequency driver with a 380 mm (15 in) diameter, coupled with a 2432H high-frequency compression driver featuring a 38 mm (1.5 in) exit and a 75 mm (3 in) voice coil. The loudspeaker includes a large-format Progressive Transition waveguide that provides a 90° x 50° coverage pattern.
The waveguide is rotatable, allowing the loudspeaker to be mounted in either vertical or horizontal orientation. The system is equipped with a 400 W, 70/100 V transformer. The AW595-LS meets the EN 54-24 standard for life safety applications. Parts are sealed on LS models.
Features:
- Weather-resistant
- Fiberglass enclosure
- EN 54-24 compliant
- 90° x 50° coverage
- 2265H low-frequency driver
- 2432H high-frequency driver
- Progressive Transition waveguide
- Rotatable waveguide
- Available in gray and black
- 400 W power
- 70/100V transformer included
- U-type mounting bracket included
| Frequency Range | 41 Hz – 20 kHz |
|---|---|
| Frequency Response | 88 Hz – 19 kHz |
| Coverage Pattern | 90° x 50°, rotatable waveguide |
| Directivity Factor (Q) | 12.6 |
| Directivity Index (DI) | 11 dB |
| Crossover Frequency | 1.2 kHz |
| System Power Rating | 400 W (1600 W peak) |
| Maximum SPL (1m) | 127 dB-SPL continuous average (133 dB peak) |
| System Sensitivity (1W @ 1m) | 100 dB SPL |
| Nominal Impedance | 8 ohms |
