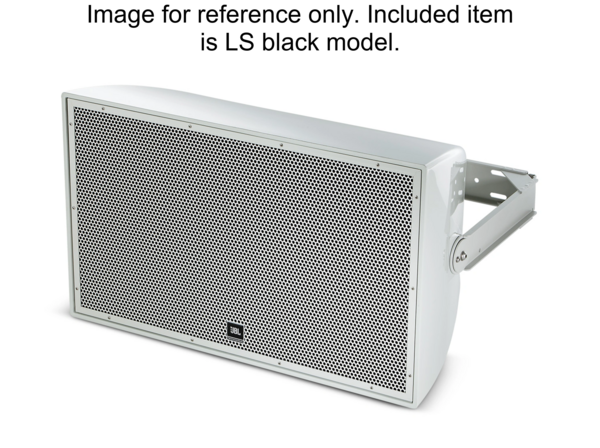

AW595-LS-BK | 15" 2-WAY ALL WEATHER LOUDSPEAKER WITH EN54-24 CERTIFICATION, BLACK. PRICED AS EACH.
AW595-LS-BK
15" 2-WAY ALL WEATHER LOUDSPEAKER WITH EN54-24 CERTIFICATION, BLACK. PRICED AS EACH.
AW595-LS-BK
15" 2-WAY ALL WEATHER LOUDSPEAKER WITH EN54-24 CERTIFICATION, BLACK. PRICED AS EACH.
- UM : EA
The AW595-LS-BK is a high-power, lightweight, two-way, full-range loudspeaker designed for life safety applications. It features a JBL Differential Drive dual voice coil and dual magnetic gap 2265H low-frequency driver with a 380 mm (15 in) diameter, paired with a 2432H high-frequency compression driver with a 38 mm (1.5 in) exit and a 75 mm (3 in) voice coil. The loudspeaker includes a large-format Progressive Transition waveguide providing a 90° x 50° coverage pattern, which is rotatable to support both vertical and horizontal orientations.
Equipped with a 400 W transformer supporting 70/100V operation, the AW595-LS-BK is designed for all-weather use and conforms to EN 54-24 standards for life safety loudspeakers. The LS models have sealed parts to ensure durability in harsh conditions.
Features:
- Weather-resistant enclosure
- All fiberglass enclosure
- EN 54-24 life safety compliant
- 90° x 50° coverage
- 2265H low-frequency driver
- 2432H high-frequency driver
- PT progressive transition waveguide
- Rotatable waveguide orientation
- Available in gray and black
- 400 W power
- 70/100V transformer included
- U-type mounting bracket included
- Suitable for sports facilities
- Suitable for themed entertainment venues
- Suitable for outdoor entertainment centers
| Frequency Range | 41 Hz – 20 kHz |
|---|---|
| Coverage Pattern | 90° x 50°, rotatable waveguide |
| Directivity Factor (Q) | 12.6 |
| Directivity Index (DI) | 11 dB |
| Crossover Frequency | 1.2 kHz |
| System Power Rating | 400 W (1600 W peak), 100 hrs |
| Maximum SPL (1m) | 127 dB-SPL continuous average (133 dB peak) |
| System Sensitivity (1W @ 1m) | 100 dB SPL |
| Nominal Impedance | 8 ohms |
| Environmental | IP55C per IEC 529 |
