AWC159-BK | 15" 2WAY ALL-WEATHER COMPACT CO-AXIAL LOUDSPEAKER. 90° X 90° BROADBAND CONTROL, COAX DRIVER WITH

  • MAP: $1,605.00 / EA
  • List Price: $1,926.00 / EA
  • Log in to see if custom discounts apply
  • Minimum Order Quantity: 1
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
15" 2WAY ALL-WEATHER COMPACT CO-AXIAL LOUDSPEAKER. 90° X 90° BROADBAND CONTROL, COAX DRIVER WITH
15" 2WAY ALL-WEATHER COMPACT CO-AXIAL LOUDSPEAKER. 90° X 90° BROADBAND CONTROL, COAX DRIVER WITH
Click image to enlarge
15" 2WAY ALL-WEATHER COMPACT CO-AXIAL LOUDSPEAKER. 90° X 90° BROADBAND CONTROL, COAX DRIVER WITH
15" 2WAY ALL-WEATHER COMPACT CO-AXIAL LOUDSPEAKER. 90° X 90° BROADBAND CONTROL, COAX DRIVER WITH

AWC159-BK
15" 2WAY ALL-WEATHER COMPACT CO-AXIAL LOUDSPEAKER. 90° X 90° BROADBAND CONTROL, COAX DRIVER WITH

  • UM : EA
  • Estimated Weight: 61.0

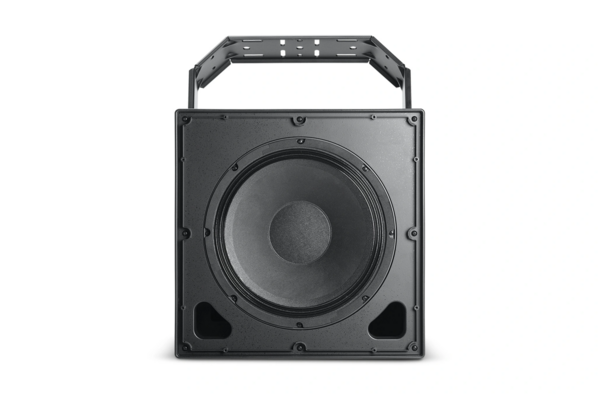

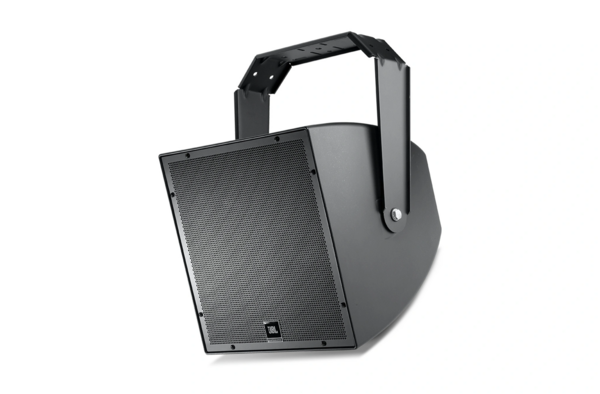

The AWC159-BK is a compact, 2-way coaxial loudspeaker featuring a 15-inch low-frequency driver. It is constructed for high weather resistance, suitable for outdoor and indoor installations requiring full-range audio reproduction.

Features:

  • IP56 weather-resistant rating
  • 90° x 90° broadband pattern control
  • 380 mm (15 in) woofer with Kevlar-reinforced cone and 75 mm (3 in) voice coil
  • 38 mm (1.5 in) diaphragm compression driver with high temperature polymer diaphragm
  • Clarity for speech and extended frequency response for music
  • Advanced high-slope crossover for constant coverage and smooth midrange
  • 500W power handling with high sensitivity for high SPL
  • High-power passive crossover
  • Frequency response: 52 Hz – 20 kHz
  • 300W 70V/100V multi-tap transformer or direct 8Ω low-impedance
Frequency Range 52 Hz – 20 kHz
Frequency Response 80 Hz – 20 kHz
Coverage Pattern 90° x 90°
Directivity Factor (Q) 11.1 (1 kHz – 16 kHz)
Directivity Index (DI) 9.7 dB (1 kHz – 16 kHz)
System Power Rating 500 W (2000 W peak), 2 hrs; 300 W (1200 W peak), 100 hrs
Sensitivity 98 dB (80 Hz – 20 kHz, 2.83V @ 1m)
Maximum SPL Direct 8Ω: 125 dB (131 dB peak); 300 W Tap: 123 dB (129 dB peak)
Crossover Network 1.5 kHz, 4th order high-pass; 2nd order low-pass
Nominal Impedance 8ohms
