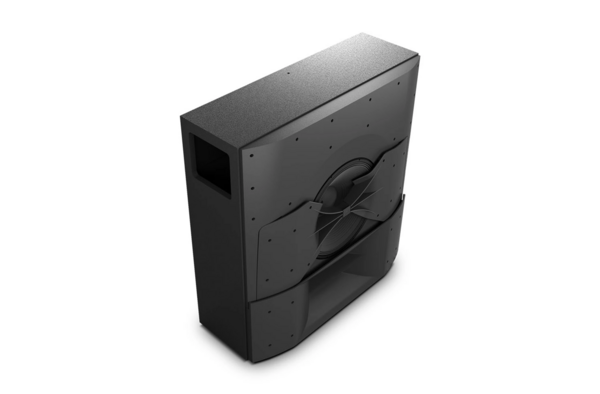

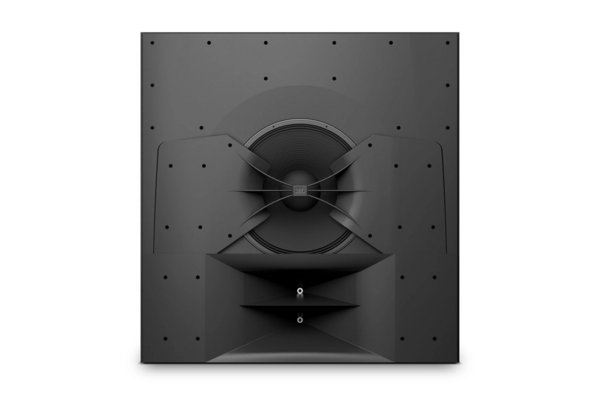

C221 | TWO WAY SCREENARRAY CINEMA LOUDSPEAKER

The C221 is a two-way ScreenArray cinema loudspeaker designed for small to medium-sized cinema environments. It incorporates Dual Dissimilar Arraying and Acoustic Aperture Technology to deliver uniform sound coverage and accurate audio reproduction. The loudspeaker has a depth of 12 inches, suitable for installations with limited space.

The C221 utilizes driver technology commonly employed in professional movie studios to maintain audio fidelity across the listening area.

• Two-way ScreenArray design for maximum output, improved coverage, and minimum distortion
• Dual Dissimilar Arraying Technology for coverage in raked seating and extended high-frequency output
• Acoustic Aperture Technology for lower distortion, higher sensitivity, and enhanced mid-range performance
• 12-inch footprint saves space without sacrificing performance
• Suitable for small and medium cinemas with a maximum throw distance of 15m

Frequency Response	77Hz - 18kHz
Crossover Frequencies	1700Hz (LF), 2000Hz (HF1), 1700Hz (HF2)
Sensitivity	100 dB SPL @ 2.83V
Maximum SPL	125 dB
Nominal Impedance	8 ohm
Power Handling (2Hr AES Rating)	300W
Power Handling (100Hr AES Rating)	150W
