C24CT MICROPLUS | MEDIUM OUTPUT CEILING SPEAKER ASSEMBLY. COMPLETE ASSEMBLY INCLUDES BACKCAN, GRILLE AND TILE RAILS.

  • MAP: $155.00 / EA
  • List Price: $155.00 / EA
  • Log in to see if custom discounts apply
  • Minimum Order Quantity: 2
  • Case Quantity: 2
  • Sign In or Submit RFQ for accurate lead times
MEDIUM OUTPUT CEILING SPEAKER ASSEMBLY. COMPLETE ASSEMBLY INCLUDES BACKCAN, GRILLE AND TILE RAILS.
Click image to enlarge

C24CT MICROPLUS
MEDIUM OUTPUT CEILING SPEAKER ASSEMBLY. COMPLETE ASSEMBLY INCLUDES BACKCAN, GRILLE AND TILE RAILS.

  • UM : EA

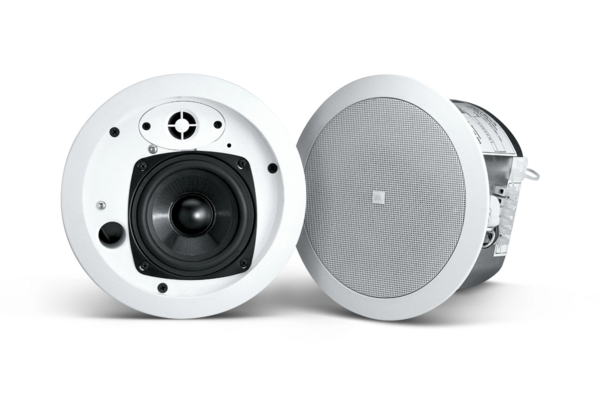

The Control 24CT MicroPlus is a compact in-ceiling loudspeaker designed for background music and paging applications. It delivers full-range sound suitable for integration into ceiling spaces.

  • 150° conical coverage
  • Smooth frequency response
  • Advanced crossover network for even coverage
  • 115 mm (4.5 in) woofer with graphite cone and butyl rubber surround
  • 12 mm (0.5 in) polycarbonate tweeter for extended response
  • 25 W multi-tap transformer for 70 V/100 V systems
  • Shallow 105 mm (4.1 in) mounting depth
    • Frequency Range 80 Hz - 25 kHz
    Power Capacity 30 W Continuous Program Power; 15 W Continuous Pink Noise
    Transformer Taps 70 V: 25 W, 12 W, 6 W taps; 100 V: 25 W, 12 W taps
    Nominal Sensitivity 85 dB SPL @ 1 m
    Coverage Angle 150° conical
    Crossover Frequency 3.5 kHz, 3rd order low-pass plus 3rd order high-pass
    Maximum SPL 99 dB @ 1 m, 25 W tap
