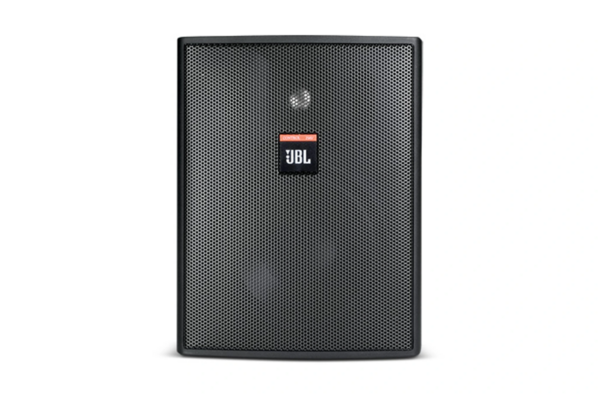

C25AV-LS | PREMIUM 5.25" TWO-WAY, UL1480 UUMW RATED FOR FIRE ALARM USE, HIGHLY WEATHER RESISTANT,

The Control 25AV-LS is an indoor/outdoor loudspeaker designed for life safety applications. It is based on the Control 25AV platform and is UL 1480 UUMW Listed for integration with fire alarm and emergency communication systems. The loudspeaker complies with the EN 54-24 standard for fire detection and fire alarm systems—loudspeakers, ensuring suitability for life safety use.

• UL 1480 UUMW Listed for Fire Alarm and Emergency Communication Systems
• EN 54-24 Compliant for Life Safety Applications
• Video shielded for use near video monitors
• Smooth frequency response
• Aluminum grille with polyester powder coating
• 60 W transformer for 70 V or 100 V lines, with 8 ohms thru
• SonicGuard overload protection
• 130 mm polypropylene coated woofer
• 20 mm titanium coated horn-loaded tweeter
• Includes InvisiBall mounting hardware and sealed input panel cover
• Screw-down input terminals
• 105° x 85° high frequency horn

Frequency Range	90 Hz - 20 kHz
Power Rating	200 W continuous program power (8 ohm bypass mode), 100 W continuous pink noise (8 ohm bypass mode), 60 W (60W tap setting)
Transformer Taps	60W, 30W, 15W, 7.5W @ 70V
Sensitivity	88 dB at 1W/1m (1kHz–10kHz, ave., 8 ohm bypass mode); 76 dB at 1W/4m per EN54-24 (100 Hz – 10 kHz, ave., 8 ohm bypass mode)
Coverage Angle	110° horizontal x 85° vertical (1 kHz to 16 kHz, ave.)
Directivity Factor (Q)	4.8 (500 Hz to 4kHz)
Directivity Index (DI)	6.5 dB (500 Hz to 4kHz)
Maximum SPL	107 dB average, 113 dB peak @ 1m (8 ohm bypass mode), 92 dB @ 4m at 60W tap
Drivers	130 mm polypropylene coated paper cone with WeatherEdge surround, 25 mm voicecoil on kapton former; HF: 20 mm titanium coated PEI
Input Connectors	Captive screw-down terminals, zinc-plated copper base, nickel-plated screws/washers, accepts up to 9 mm outside, 4 mm inside open lug, plus bare wire up to 12 AWG
Outdoor Capability	Exceeds MIL-STD-810 for humidity, salt spray, temperature, UV; IEC 529 IP-x5 splashproof rating
Safety Agency	UL1480-UUMW Listed, EN54-24:2008 certified, NFPA90, NFPA70A, IEC60849/EN60849 compliant
Enclosure	ABS material rated UL94-5VA; baffle: aluminum with polyester powder coating
