C26CT-LS | PROFESSIONAL CEILING SPEAKER FOR LIFE-SAFETY APPLICATIONS.UL1480 UUMW LISTED FOR USE IN

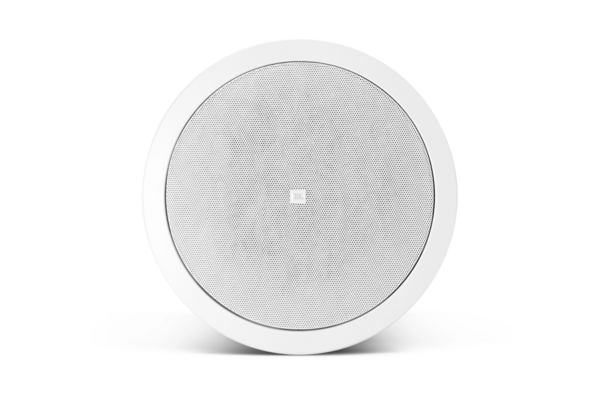

The Control 26CT-LS is a compact ceiling loudspeaker designed for life safety applications. It is intended for use in background and foreground music sound systems.

• UL1480 UUMW Listed for use in Fire Alarm and Emergency Communication Systems
• 6.5-inch coaxial woofer with butyl rubber surround and 0.75-inch titanium-coated diffraction-loaded tweeter
• High power, wide frequency response, and low distortion for high sound level capability
• Includes grille, backcan, and tile rails for easy installation

Frequency Range	80 Hz - 20 kHz
Power Rating	150 W Continuous Program Power, 75 W Continuous Pink Noise (300W peak), 100 hrs
Transformer Taps	60W, 30W, 15W, 7.5W @ 70V
Coverage Angle	110° conical
Directivity Index	4.6 (500 Hz to 4 kHz average)
Maximum SPL (1m)	107 dB (top 70V/100V tap)
Drivers	LF Driver 165 mm, HF Driver 19 mm
Input Connectors	Removable locking connector with screw-down terminals
Sensitivity	89 dB (100 Hz - 10 kHz)
Safety	UL1480 UUMW listed, suitable for air handling spaces, UL and IEC compliant
