C2G02209 | 15FT/4.57M CAT6 UTP 28AWG BLK

  • Call for Price
  • Log in to see if custom discounts apply
  • Minimum Order Quantity: 1
  • Case Quantity: 0
  • Sign In or Submit RFQ for accurate lead times

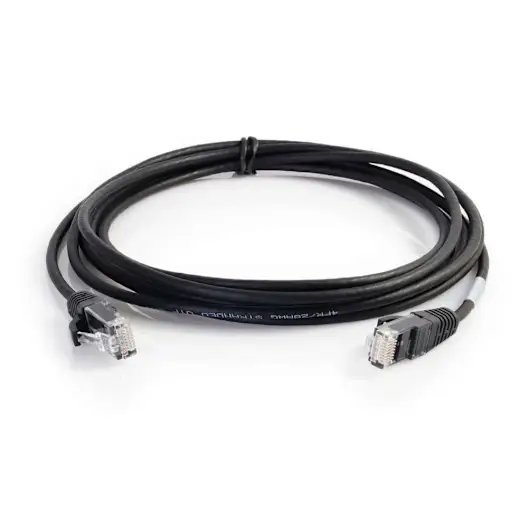

15FT/4.57M CAT6 UTP 28AWG BLK
Click image to enlarge

C2G02209
15FT/4.57M CAT6 UTP 28AWG BLK

  • UM : EA
  • Estimated Weight: 1.0

ELECTRICAL SPECIFICATIONS

  • Conductor DC Resistance: 9.38O/100m (maximum)
  • Impedance: 100O
  • Capacitance: 5600pf/100m
  • Propagation Delay: 545ns/100m (maximum)
  • Delay Skew: 45ns/100m (maximum)

PHYSICAL SPECIFICATIONS

  • Wiring Scheme: T568B
  • Temperature Rating: 75°C
  • Voltage Rating: 30V
  • Approvals: CE
  • Warranty: Lifetime
  • Package Type: Polybag

CONDUCTOR (4 PAIR)

  • Conductor Type: 248AWG (7/0.16 BC)
  • Insulation: FM-PE ID: ø.60±0.05
  • Twist Pair: White/Orange, Blue, White/Blue, Green, White/Green, Brown, White/Brown

CONNECTOR TYPE (QTY. 2)

  • Connector Type: 8P8C (RJ45)
  • Gender: Male
  • Contact Material: Gold Plated 50µ
  • Hood Material: Molded PVC, UL94V-0

OVERALL CABLE

  • Jacket: PVC
  • Outer Diameter: 3.8 ± 0.15mm
