C32-18 | COMPLETE CEILING INSTALLATION KIT WITH 18" FIXED DROP FOR 10" TO 32" SCREENS

  • MAP: $135.59 / EA
  • List Price: $169.19 / EA
  • Log in to see if custom discounts apply
  • Case Quantity: 1
  • Sign In or Submit RFQ for accurate lead times
COMPLETE CEILING INSTALLATION KIT WITH 18" FIXED DROP FOR 10" TO 32" SCREENS
COMPLETE CEILING INSTALLATION KIT WITH 18" FIXED DROP FOR 10" TO 32" SCREENS
Click image to enlarge
COMPLETE CEILING INSTALLATION KIT WITH 18" FIXED DROP FOR 10" TO 32" SCREENS
COMPLETE CEILING INSTALLATION KIT WITH 18" FIXED DROP FOR 10" TO 32" SCREENS

C32-18
COMPLETE CEILING INSTALLATION KIT WITH 18" FIXED DROP FOR 10" TO 32" SCREENS

  • UM : EA
  • Estimated Weight: 8.0

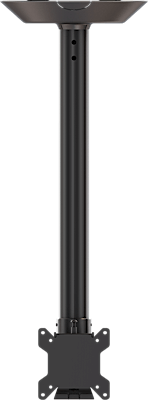

Includes VESA screen adapter, 18″ fixed extension column (E018) and structural ceiling adapter (CA1C) for mounting on a single joist. Continuous tilt of 15° forward and 15° backward with 360° rotation.

Features:

  • VESA compatible 75x75mm, 100x100mm
  • Fast and easy installation
  • Continuous tilt of 15° forward and 15° backward and 360° rotation
  • Through-column cable routing for an uncluttered look
  • Decorative covers to hide ceiling bolts for a finished look
  • Pre-sorted hardware pack for easy installation
TV size range 10" – 32"
Weight capacity 40lb (18kg)
Max mounting pattern 100x100mm
VESA mounting patterns 75x75mm, 100x100mm
Tilt +15°/-15°
Rotation (yaw) 360°
Drop length 18"
Height adjustment static
1.5" NPT thread compatible Yes
Mounting surface wood joist, structural wood or structural concrete (accessory required HE4)
Joist spacing single joist
Construction high-grade cold rolled steel
Product finish scratch resistant epoxy powder coat
Product weight 6.8lb (3.1kg)
Package specifications 20"x10"x6"
Color black
Warranty 10-years
