C32-18A | COMPLETE CEILING INSTALLATION KIT WITH 12" TO 18" DROP ADJUSTMENT FOR 10" TO 32" SCREENS
C32-18A
COMPLETE CEILING INSTALLATION KIT WITH 12" TO 18" DROP ADJUSTMENT FOR 10" TO 32" SCREENS

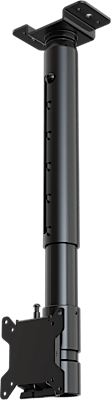

Click image to enlarge
C32-18A
COMPLETE CEILING INSTALLATION KIT WITH 12" TO 18" DROP ADJUSTMENT FOR 10" TO 32" SCREENS
- UM : EA
- Estimated Weight: 9.2
Includes VESA screen adapter, 12″-18″ adjustable extension column (EA01218) and structural ceiling adapter (CA1) for mounting on a single joist. Continuous tilt of 15° forward and 15° backward with 360° rotation. Incremental drop lengths provide perfect screen positioning.
Features:
- VESA compatible 75x75mm, 100x100mm
- 1″ incremental drop length adjustment
- Fast and easy installation
- Continuous tilt of 15° forward and 15° backward and 360° rotation
- Through-column cable routing for an uncluttered look
- Pre-sorted hardware pack for easy installation
| TV size range | 10" – 32" |
|---|---|
| Weight capacity | 40lb (18kg) |
| Max mounting pattern | 100x100mm |
| VESA mounting patterns | 75x75mm, 100x100mm |
| Tilt | +15°/-15° |
| Rotation (yaw) | 360° |
| Drop length | 12" - 18" |
| Height adjustment | 1" increments |
| 1.5" NPT thread compatible | Yes |
| Mounting surface | wood joist, structural wood or structural concrete (accessory required HE4) |
| Joist spacing | single joist |
| Construction | high-grade cold rolled steel |
| Product finish | scratch resistant epoxy powder coat |
| Product weight | 8.1lb (3.7kg) |
| Package specifications | 20"x10"x6" |
| Color | black |
| Warranty | 10-years |
×
